Rd 10 500w entry level
Have this subwoofer in a ported atrend 1.24cf box.. Deep clean bass.. Very nice sub for the money.. Dont hesitant on this purchase you won't be disappointed..
Posted by Adam Trujillo on Aug 4th 2020
Resilient Sounds
Read more
$139.95

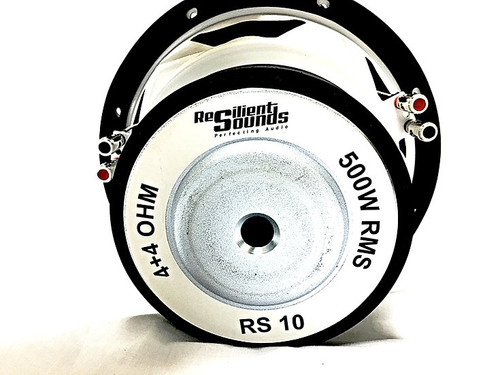

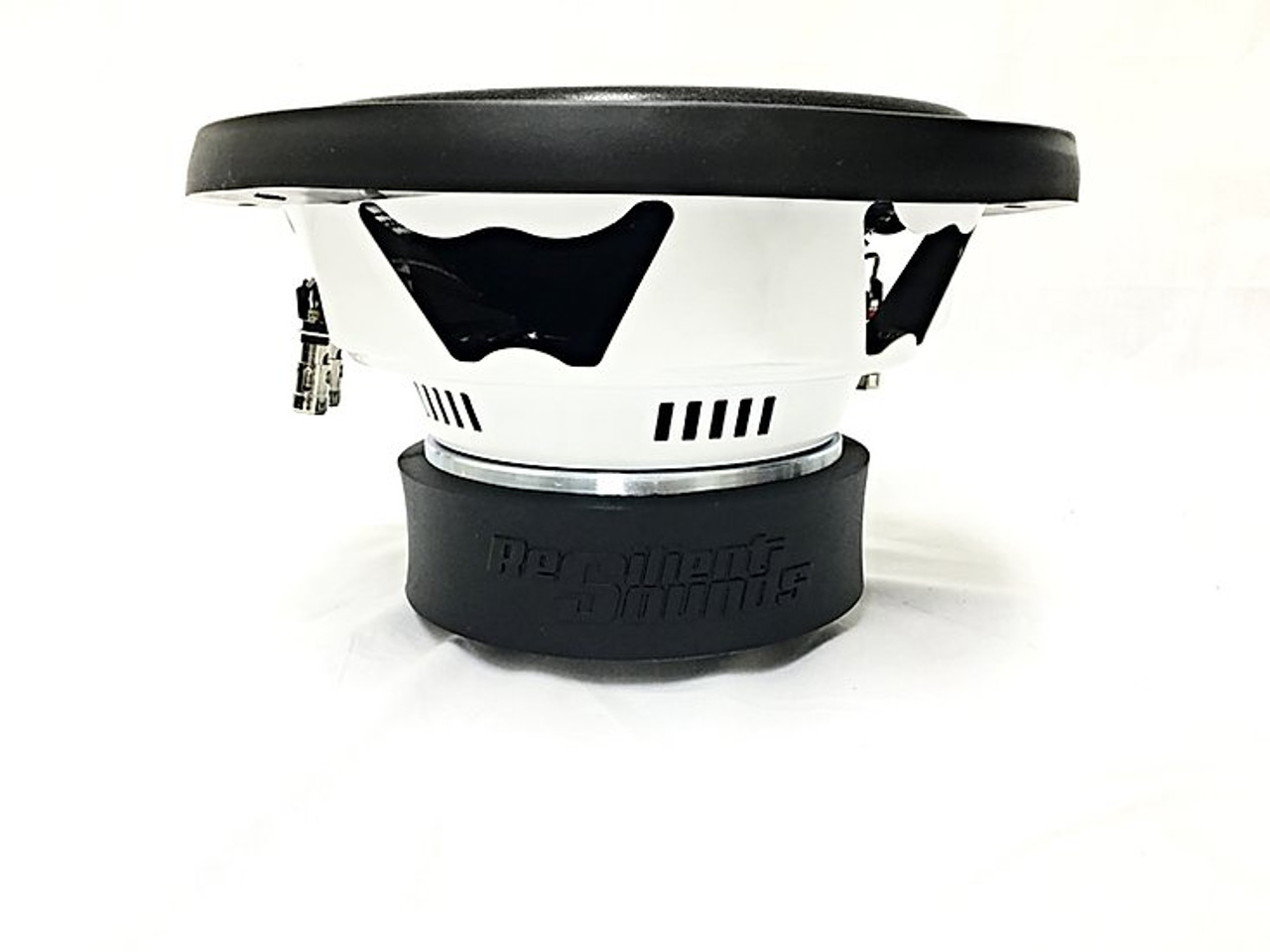

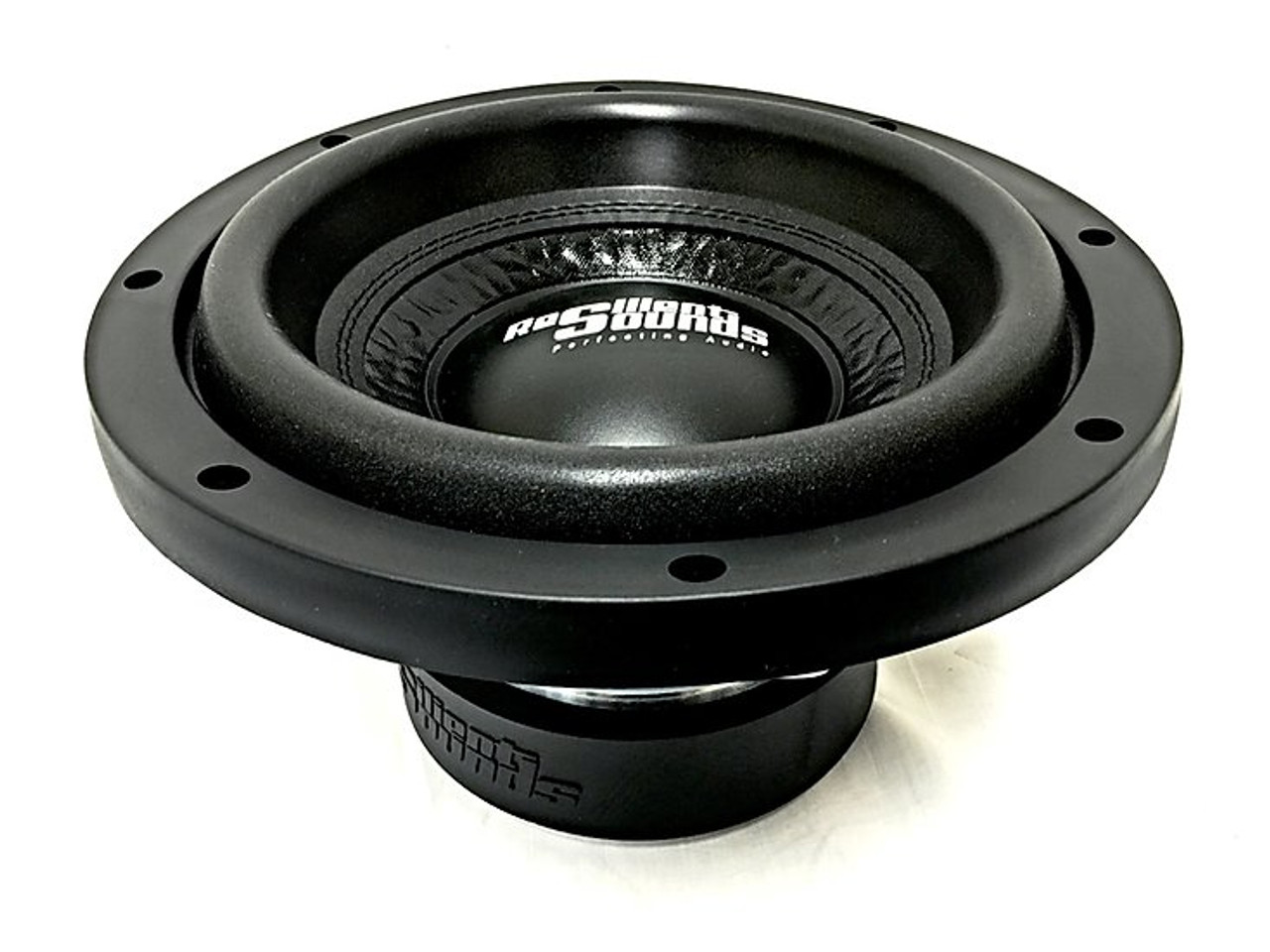

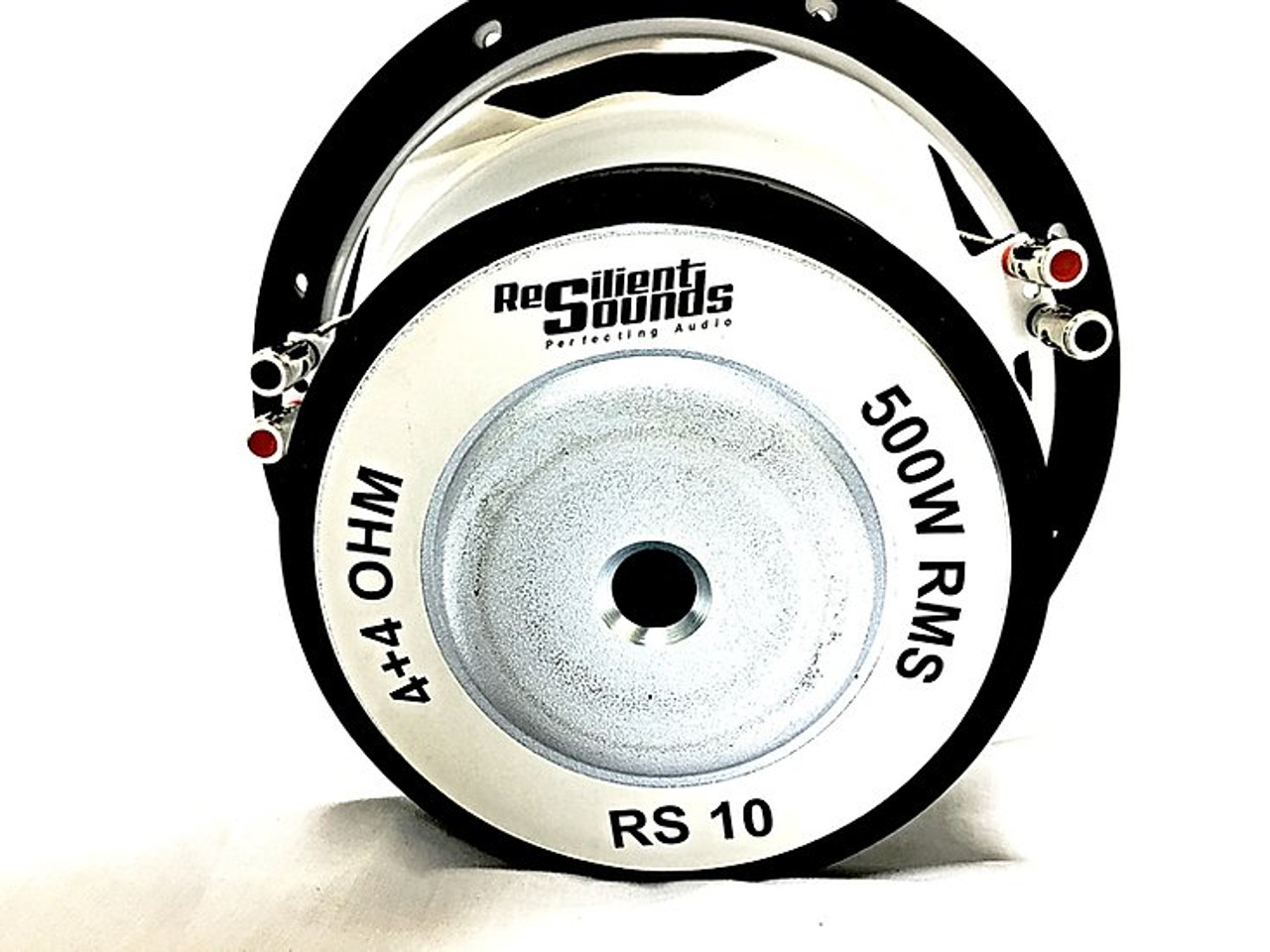

The RS 10 which features dual stacked nomex spiders and a 100 oz motor. The RS Series is rated 500 watts rms / 1000 watts peak. Dual 4 for impedance. Even though this is our entry line, they will surely exceed your expectations for their performance and muscial quality!
SPECS
RMS:500
Voice Coil: 2.5"
Motor:100 Oz
SPL: 84.5 db
FMS: 31.4 Hz
BL: 25.6
RES: 82.2
RE: 8.0
QMS: 4.38
QES: 0.40
QTS: 0.36
CMS: 0.16 mm/N
MMS: 164.6 gr
Nref: 0.18%
BT: 25.6
VAS: 23.8 L
RP: 90.6
LP: 116.5 mH
CP: 300.8 uF
Le: 3.66 mH
Xmax: 16
-
BOX HEALTHY RECOMENDATION
Every vehicles applications, equipment, tuning, wiring, ext all play a factor in making sure your woofers are playing clean signals to avoid any clipping. Our products have the reputation of taking some of the most abuse in the industry for its given power rating, but to ensure the longevity using the right air space and scoping for a clean signal will be sure to have a lasting daily resilient subwoofer.
Suggested Healthy spec range.
Rule of thumb lean towards smaller enclousre if clamping @ or more than conservative power. Lean towards bigger enclosure clamping below conservative power
Ported enclosure
.75ft-1.25ft tuned @35hertz with 12-16sqaure inch of port area per cubic foot.
MOUNTING DEPTH 5.75" | CUTOUT 9.17"
Description
The RS 10 which features dual stacked nomex spiders and a 100 oz motor. The RS Series is rated 500 watts rms / 1000 watts peak. Dual 4 for impedance. Even though this is our entry line, they will surely exceed your expectations for their performance and muscial quality!
SPECS
RMS:500
Voice Coil: 2.5"
Motor:100 Oz
SPL: 84.5 db
FMS: 31.4 Hz
BL: 25.6
RES: 82.2
RE: 8.0
QMS: 4.38
QES: 0.40
QTS: 0.36
CMS: 0.16 mm/N
MMS: 164.6 gr
Nref: 0.18%
BT: 25.6
VAS: 23.8 L
RP: 90.6
LP: 116.5 mH
CP: 300.8 uF
Le: 3.66 mH
Xmax: 16
-
BOX HEALTHY RECOMENDATION
Every vehicles applications, equipment, tuning, wiring, ext all play a factor in making sure your woofers are playing clean signals to avoid any clipping. Our products have the reputation of taking some of the most abuse in the industry for its given power rating, but to ensure the longevity using the right air space and scoping for a clean signal will be sure to have a lasting daily resilient subwoofer.
Suggested Healthy spec range.
Rule of thumb lean towards smaller enclousre if clamping @ or more than conservative power. Lean towards bigger enclosure clamping below conservative power
Ported enclosure
.75ft-1.25ft tuned @35hertz with 12-16sqaure inch of port area per cubic foot.
MOUNTING DEPTH 5.75" | CUTOUT 9.17"
