    DS18

    $124.95
    (No reviews yet) Write a Review
    SKU:
    DS18-XM3
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

    Key Features

    • Full 3-Way Active Crossover (Front/Rear/Sub)
    • Up to 11V Output via High-Performance Line Driver
    • 0–18dB Adjustable Bass Boost with Frequency Control (25Hz–100Hz)
    • Remote Subwoofer Level Controller (Clip Indicator Included)
    • Selectable Input Modes (1/2/3-Way)



    Crossover Specifications

    Crossover Ways
    3 Ways
    Signal-to-Noise Ratio
    >102dB
    Total Harmonic Distortion (1KHz, 1VRMS)
    0.01%
    Crossover Slope
    12 dB/octave Butterworth
    Front / Rear HPF Frequency Cut-off
    25Hz to 2kHz
    Front / Rear LPF Frequency Cut-off
    250Hz to 20kHz
    Subwoofer LPF Frequency Cut-off
    40Hz to 250Hz
    Bass Boost
    0 to 18 dB
    Bass Boost Frequency
    25Hz to 100Hz
    Low Level Input Voltage
    Up to 11 Volts
    Maximum Pre-Output (14.4 v)
    Up to 11 Volts
    Operation Voltage
    9 to 15 VDC



    Crossover Features

    Tiffany RCA Input and Output connectors
    Yes
    Power, Ground and Remote Fast Connector
    Yes
    Delayed Remote Output
    Yes
    Led Indicators
    Power / Clip
    Input Modes
    3/2/1 Way Selectable
    Mixed Input
    YES Selectable
    Remote Subwoofer Level Control
    Yes, Metal Case with Clip Indicator



    Crossover Measurement

    Overall Length
    6.25" / 159mm
    Overall Width
    5" / 127mm
    Overall Height
    1.2" / 31mm



    Product Overview

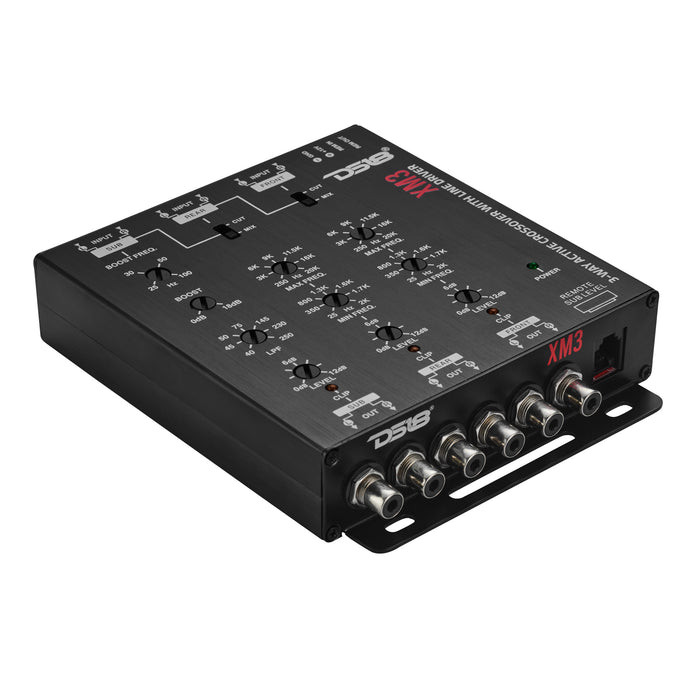

    3-Way Active Crossover With Line Driver

    DS18’s XM3 3-Way Active Crossover delivers precise tuning and complete frequency control for cleaner, more accurate sound!

    Get full 3-way control with independent front, rear, and subwoofer tuning. Fine-tune your setup with high-pass and low-pass filters, adjustable bass boost up to 18dB (25–100Hz), and built-in pre-output 11V line drivers for a clean, distortion-free signal (0.01% THD).

    Better Bass, On the Fly
    The XM3’s remote subwoofer level controller with clipping indicator lets you fine-tune bass on the fly. Selectable 3/2/1-way input modes and a mixed input selector make system integration effortless.

    Built for Reliable Integration

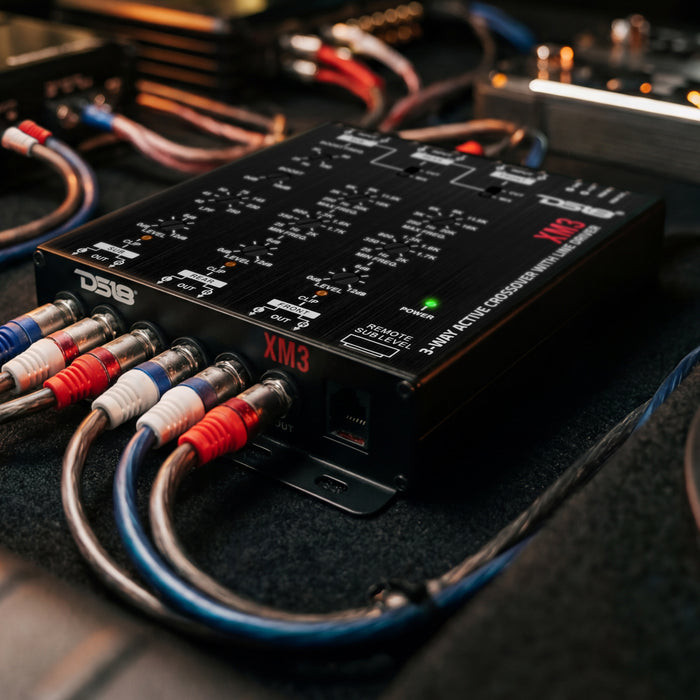

    Built with Tiffany RCA connectors, fast-connect power/ground/remote terminals, and delayed remote output, the XM3 installs cleanly into any pro-grade setup.

    At just 6.25” x 5” x 1.2”, the XM3 fits virtually anywhere, and its 9V–15V DC operating range and up to 11V output make it suitable for any serious build.

    Get the full potential out of your mids, highs, and sub with DS18’s XM3.
