Description

During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/"voceteo" audiophiles.Therefore, DS18 created the PRO audio line, which features a wide variety of midranges that produce concert-like sounds that will knock the wind out of you! This all new PRO-X series 6x9" 8 OHM midrange.

 Download PRO-X698BM Product Manual

Highlights

• DS18's most sold series of High Powered pro audio.
• Great DS18 design of high durability parts including strong ferrite magnet, pressed paper cone, and CCA voice coils to get you maximum loudness with great sound quality.
• BM stands for BULLET! This includes a resonator (tweeter) with red bullet design to give the speaker a much higher range of frequencies.

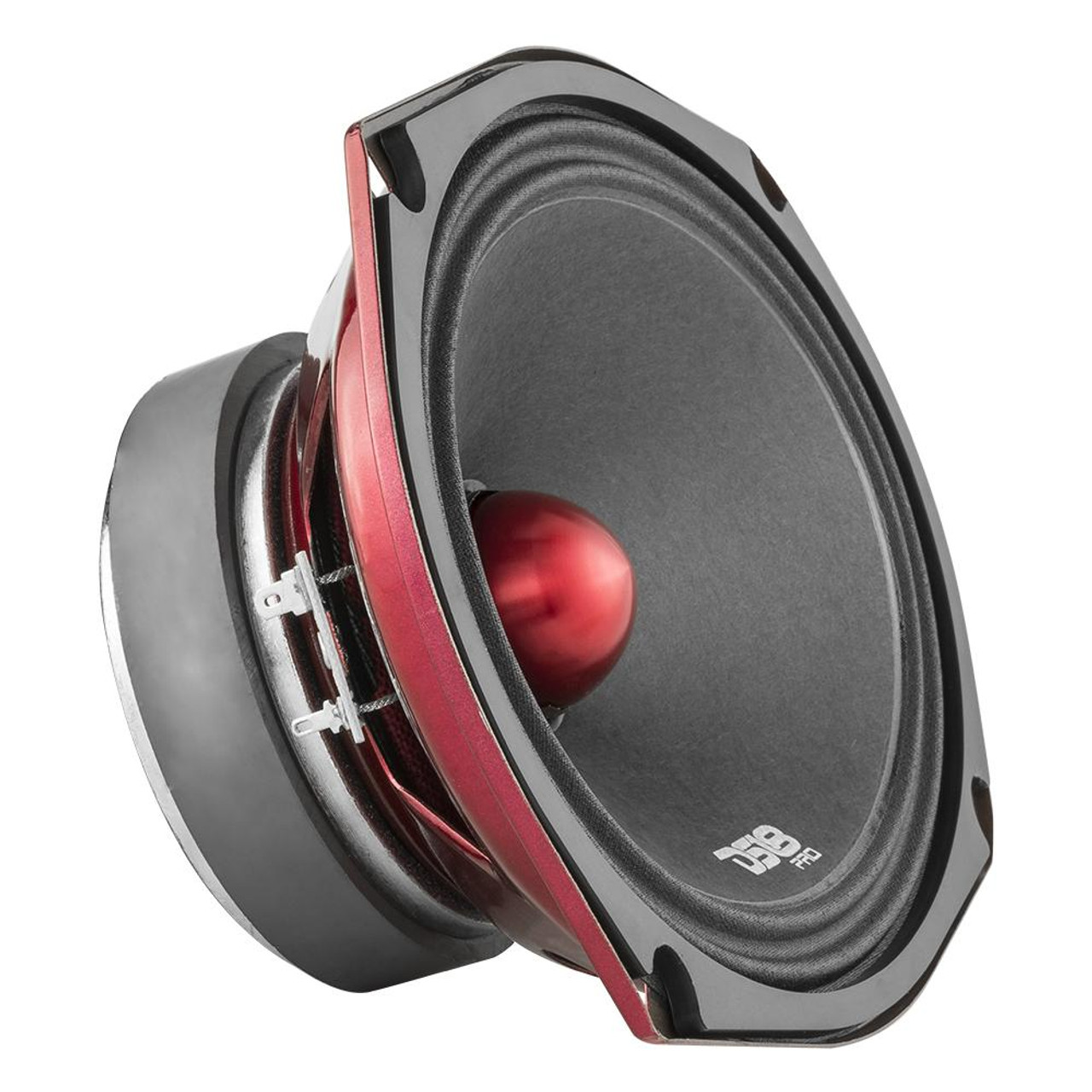

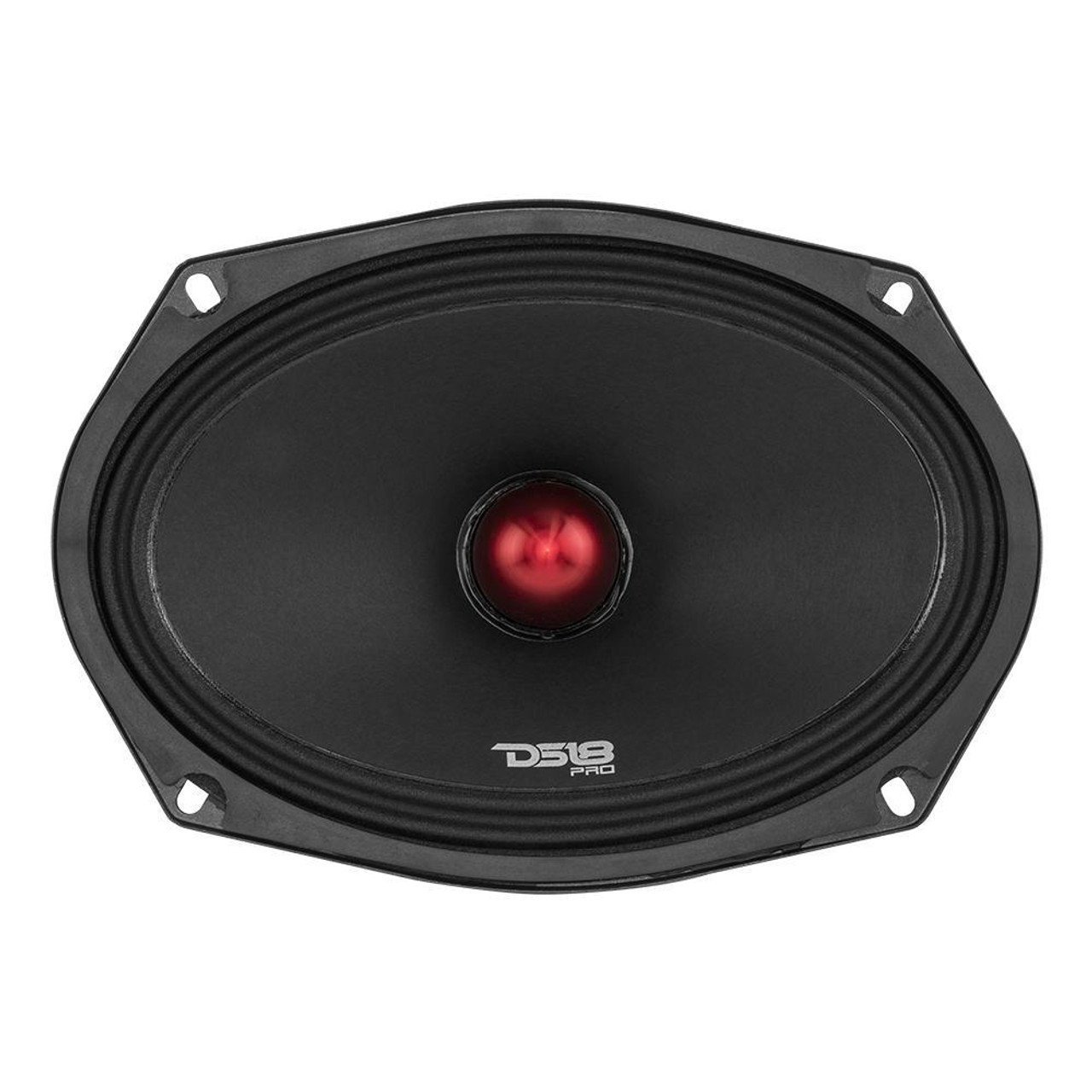

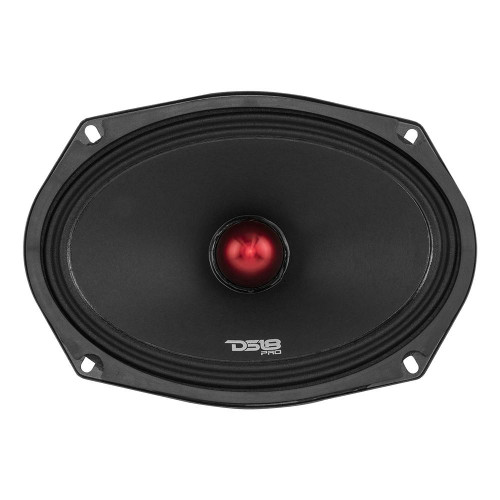

Model:	PRO-X698BM
Type:	Midrange Loudspeaker
Size:	6X9"
RMS Power:	275W
MAX Power:	550W
Frequency Response:	65Hz-12KHz
Impedance:	8 ohm
Sensitivity:	98dB
Materials
Surround:	Cloth Edge
Frame:	Red Steel Basket
Cone:	Non-Pressed Paper Cone
Magnet:	Ferrite
Voice Coil Wire:	CCAW
Diameters
Voice Coil Size:	1.5"
Magnet Size:	27 oz.
Mounting Depth:	3.35"
Cut-Out Dimension:	8.62 x 5.91"
Parameters
Vas	14.69 LTR
Xmax	9.2 mm
Fs	100 Hz
Qms	7.223
Qes	1.118
Qts	0.968
Re	5.2ohms
