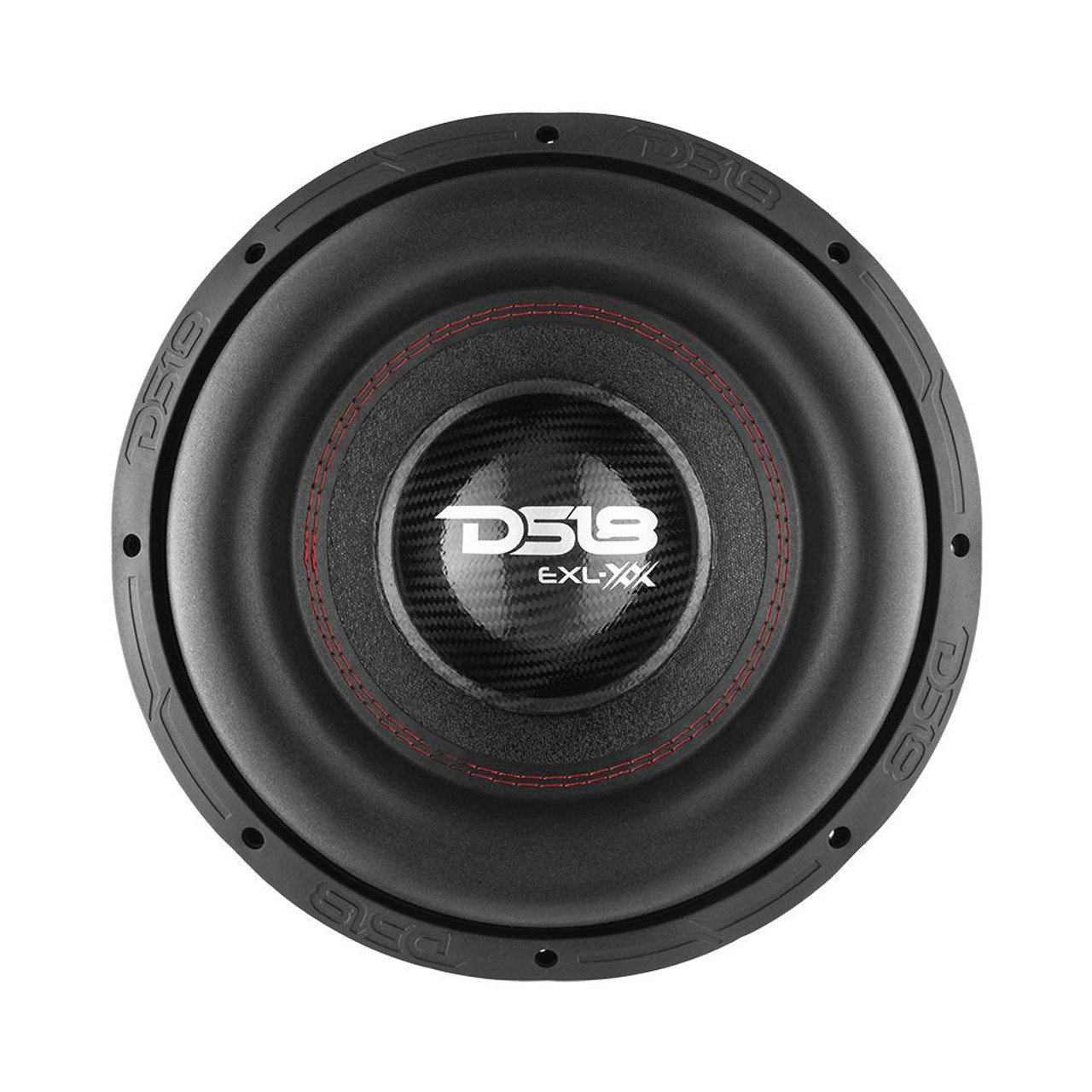

DS18 EXL-XX12.4DHE 12" High Excursion Car Subwoofer 4000 Watts Dvc 4-Ohm

High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX12.4HE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.

Download EXL-XX12.4DHE Product Manual

Highlights

• High Excursion surround for a very high amount of xmax.
• Great power handling of 2000w RMS and 4000w max.
• Three inch black aluminum voice coil for high power handling and great efficiency.

Nominal Diameter	12
Nominal Impedance	4 + 4 Ohms
RMS Power Handling	2000W
MAX Power Handling	4000W
Sensitivity (1w/1m)	87 dB
Frequency Response	20Hz -1.3KHz
Recommended Lo Pass Crossover	80 Hz
Motor:
VC Diameter	/ 75.6mm
VC Former Material	Black Aluminum
Winding Material	CCAW
Cone Material	Paper
Dust Cap Material	Glass Fiber
Surround Material	Foam
Basket Material	Aluminum
Basket Color/Finish	Black
Magnet Material	Ferrite
Magnet Weight	306 Oz
Displacement Volume	3.26L
Thiele & Small Parameters
Equivalent Vol	Vas 20.738L
Excursion(one way)	Xmax 42 mm
Free Air Resonance	Fs 41.3 Hz
Mechanical Factor	Qms 4.525
Electrical Factor	Qes 0.511
Total Factor	Qts 0.459
Moving Mass	Mms 285.433 g
Compliance	Cms 0.026 mm/N
Bl Factor	BL 17.166
VC Inductance	Le 9.8 mH
Diaphragm Area	Sd 433.74 cm²
Dc Resistance	Re 3.6 + 3.6 ohms
Efficiency Bandwidth Product	EBP 80.8
Measurements
Overall Diameter	12.63" / 321mm
Overall Depth	9.25"/235mm
Front Mount Baffle Cutout	11.1" / 282mm
Mounting Depth	7.87" / 200mm
Motor Diameter	8.89" / 226mm
