Product Description

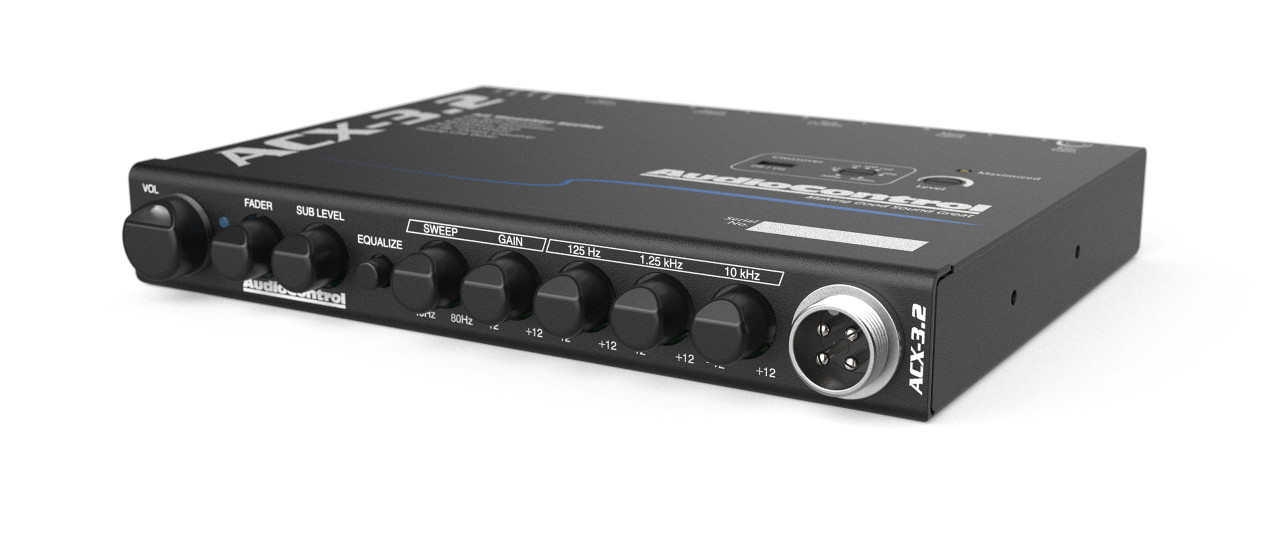

Audio Control ACX-3.2
All-Weather Equalizer & Crossover w/ Paging Mic
The ACX-3.2 sound processor is a high-output pre-amp, for all systems on-road, off-road, or off-shore. The ACX-3.2 can serve as the main control unit in your audio system allowing you to control the output to all of your amplifiers. It features a 4-band graphic equalizer that can be used to tweak your system, depending upon your mood or music selection. The built-in crossover gives you the ability to separate high and low frequencies, and send them to the appropriate amplifier and speakers, maximizing the performance of your system. Adding an ACX-3.2 to your system gives you the assurance that your system can play longer, louder, and cleaner with less distortion.
The low-profile ACX-3.2 takes your experience to another level by combining all of its audio features with a PA microphone!
If you are out on your boat ACX-3.2 allows you to play music and communicate with the person wakeboarding or tubing behind you. Own a food truck? This is great for playing music inside for the cooks, outside for the patrons, and allowing you the ability to call out an order number for a waiting customer.
The ACX-3.2 is a game changer, by offering a quality real-world solution for all of those unique installation needs. This multi-functional piece is part of our all-weather line-up making it the perfect solution for any adventure.
Features
- 4-Band Stereo Graphic EQ
- Parabass® Low-Frequency Contouring
- Variable 24 Db/Octave Linkwitz-Riley Crossover
- Front, Rear, and Subwoofer Outputs
- Master Volume, Fader, and Sub-Level Control
- Parabass® Bass Control
- High-Gain Input Stage
- Line Driver: 13-Volts Peak Output
- Dash or Console-Mountable
- Included Paging Microphone
- Selectable Illumination (red or blue)
| SPECIFICATIONS | |
| Inputs | Preamp Inputs: 1 (2 channels) |
| Input Gain: 0-20 dB | |
| Input Impedance: 20 kΩ | |
| Outputs | Preamp Outputs: 6 |
| Maximum Output Level: 7.5 Vrms / 9.5 V Peak | |
| Output Impedance: 150 Ω | |
| Performance | Frequency Response: 20Hz-20kHz ±.01dB |
| Total Harmonic Distortion: 0.03% | |
| Signal to Noise: 123 dB (inputs set to Balanced) | |
| EQ Frequencies: 40 Hz – 80 Hz (parametric), 125 Hz, 1.25 kHz, 10 kHz | |
| EQ Cut/Boost: ±10 dB | |
| Crossover type: 24 dB/octave Linkwitz-Riley | |
| Factory Crossover Setting: 100 Hz | |
| Microphone Frequency Response: 100 Hz – 6 kHz | |
| Microphone Maximum SPL: 123 dB | |
| Control | Remote In |
| General | Power Supply: High Headroom PWM Switching |
| Current Draw: 300mA | |
| Recommended Fuse Rating: 1A | |
| Weights & Dimensions | Dimensions: 6.75”W x 5”D x 1”H |
| Weight: 1.6lbs | |
| In the Box | ACX-3.2, Paging Mic, Mounting Brackets, Power Connector, Manual, Warranty |
