Product Description

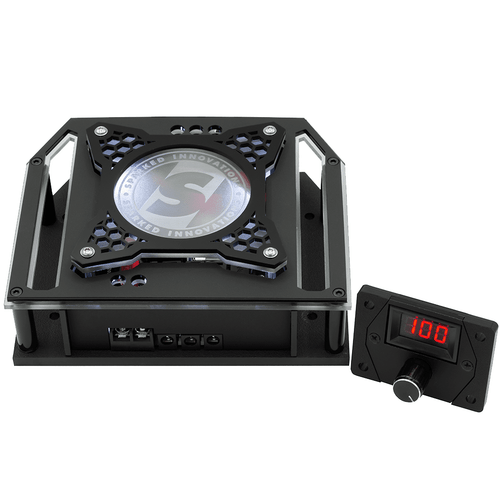

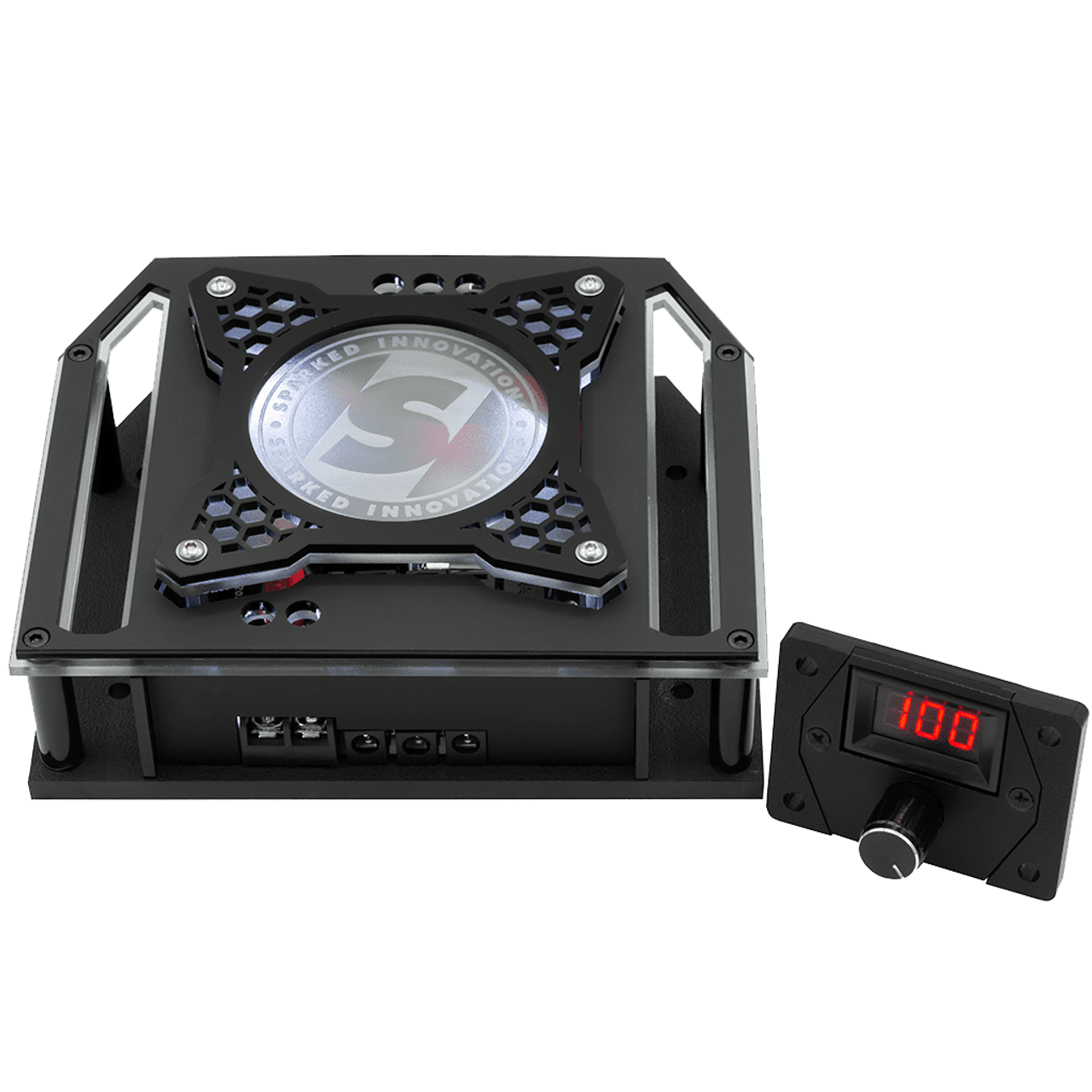

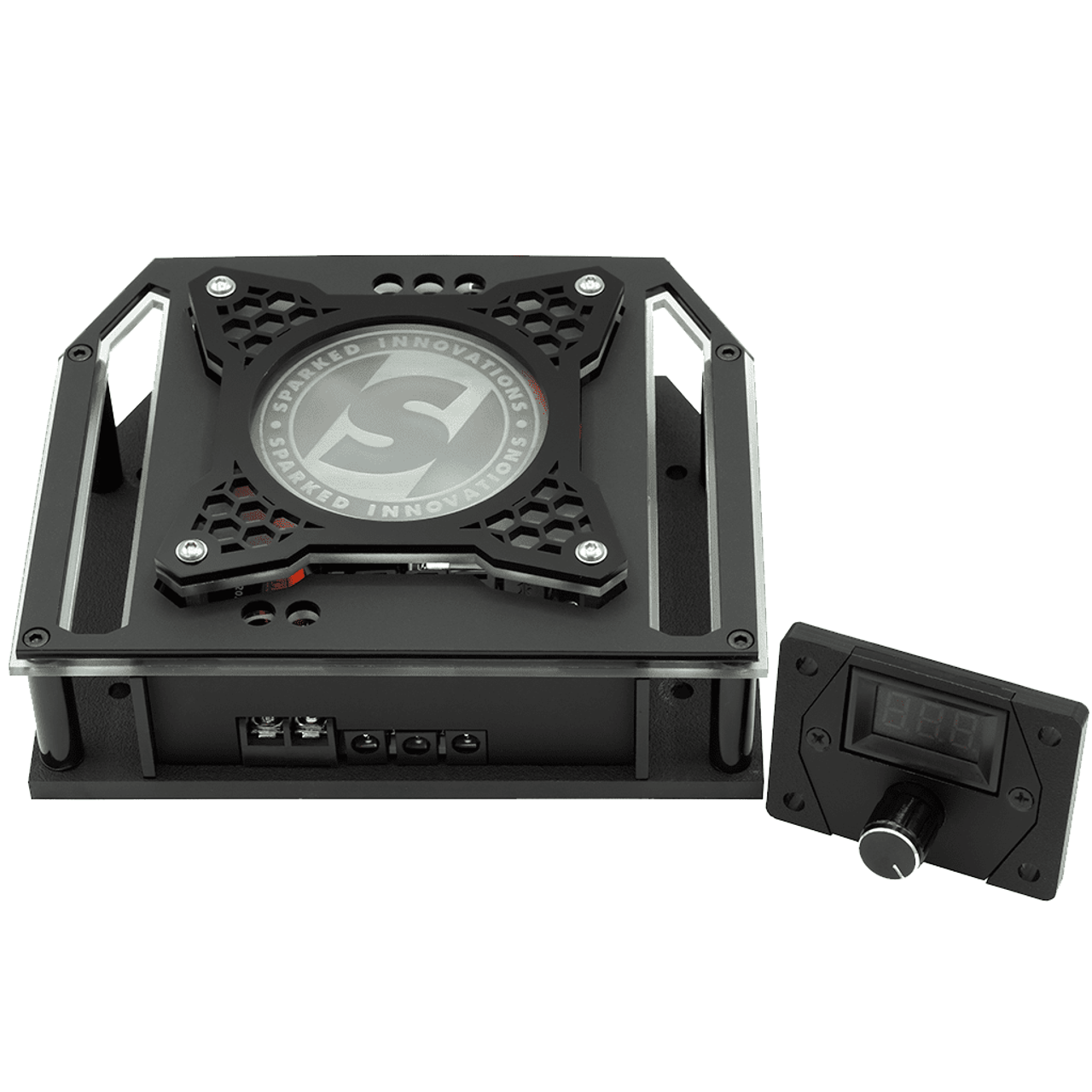

Got a 12VDC fan to cool your car audio amplifiers but don’t need them screaming at full blast all the time? Wish there were a way to slow down the fan speed to save some energy and your eardrums? Use Speedie! Speedie is a 12VDC fan speed controller with a remote-mounted digital display and knob to control the speed of your car audio amplifier cooling fans while monitoring the power output.

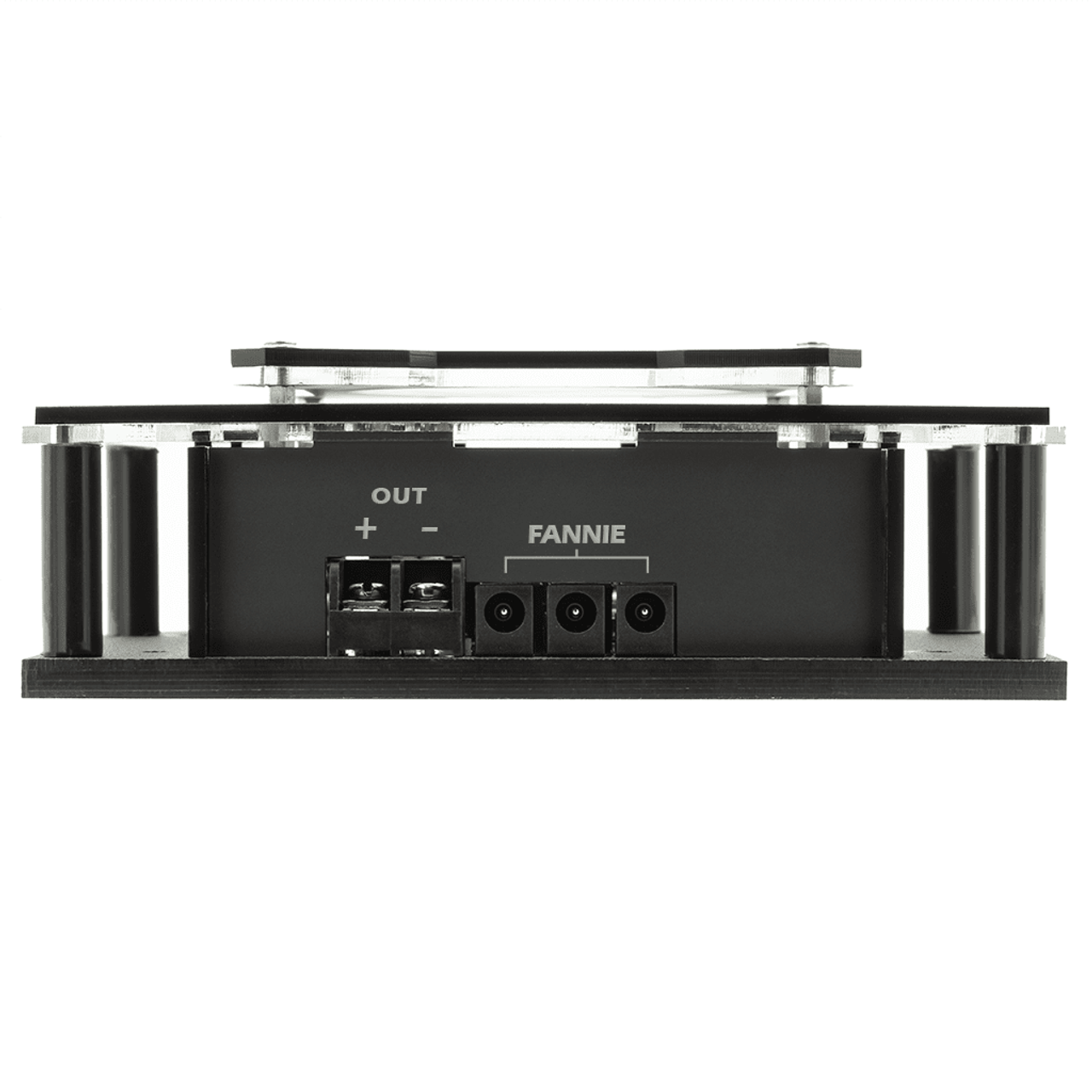

Control up to three Fannies per Speedie using the barrel connector outputs or switch the internal 10A fuse to the secondary position to enable the output terminal and control any other 12VDC fan. This model Speedie has the remote knob and display.
Speedie uses Pulse Width Modulation (PWM) to digitally control fan speed and is safe for all 12VDC fans.
NOTE: Please use the appropriate gauge wire for the auxiliary fan you’re powering.
| Current Draw @ 14.4VDC |
6.8A |
|---|---|
| 12VDC voltage range |
9~18VDC |
| Total Peak Current Capacity |
10A |
| Remote Input |
Positive (+) |
| Remote Control |
Yes |
| Remote Input Terminals |
10~22 AWG Fork Terminals or Bare Wire |
| Manufacturer |
Sparked Innovations, LLC |
| Brand |
Sparked Innovations |
| Power Wire Input Gauge |
14~10 AWG Fork Terminals or Bare Wire |
| Output Terminals |
10~18 AWG Fork Terminals or Bare Wire |
| Output |
Pulse Width Modulation (PWM) |
| Operating Voltage |
9.0VDC – 18.0VDC |
