Product Description

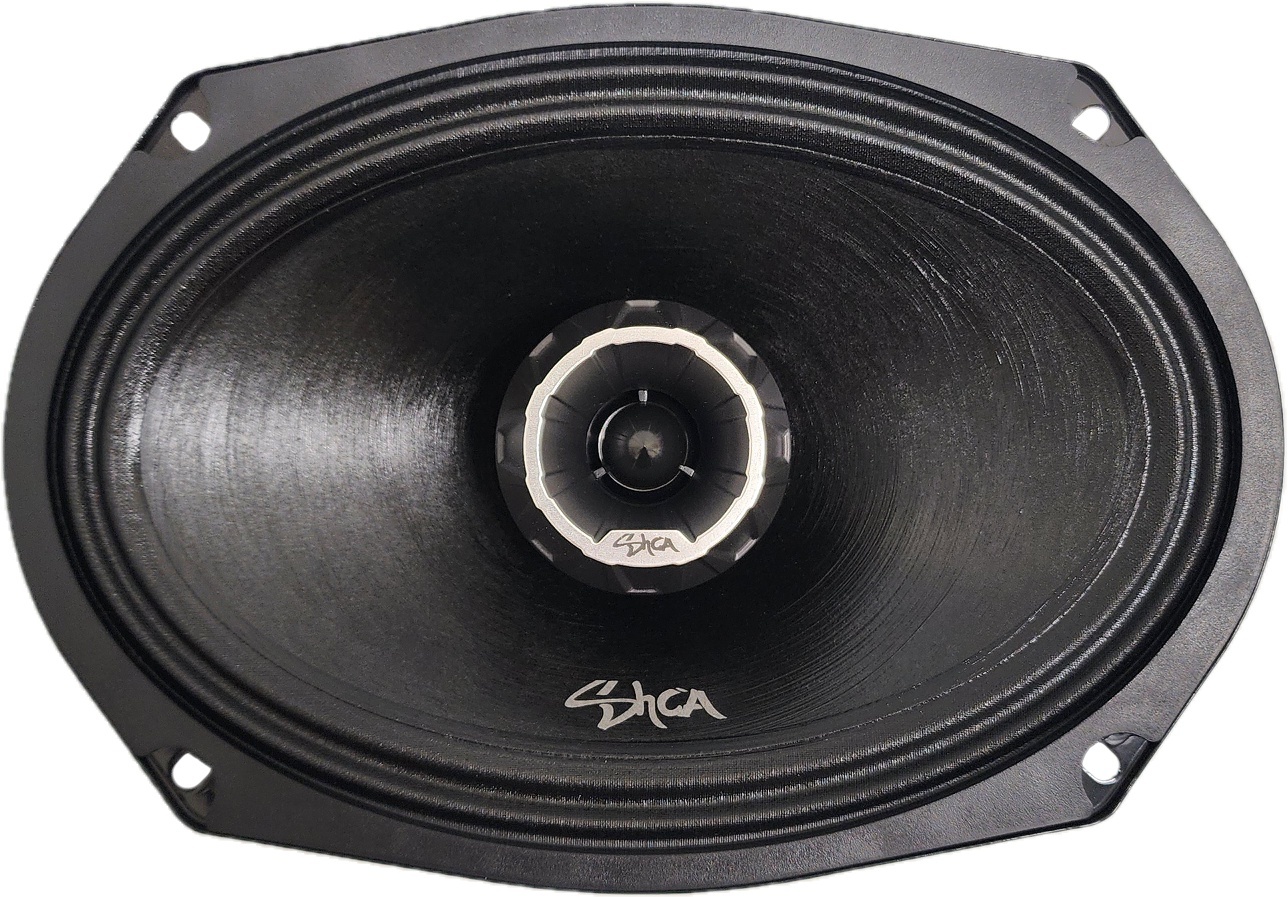

Introducing the Sky High Car Audio SH-P69, a 6x9” coaxial mid-range loudspeaker designed to elevate your car audio experience to new heights. This speaker combines cutting-edge technology with robust construction, making it ideal for enthusiasts seeking clarity, power, and durability.
Neodymium Bullet Tweeter: The SH-P69 features a 1” neodymium bullet tweeter (N38H magnet) that delivers crisp highs with precision and detail, ensuring every note is heard with clarity and accuracy.
Ferrite Woofer: Its 6x9” ferrite woofer is crafted with a water-resistant cone (IP22 rated), utilizing water-resistant paper for durability against the elements. This cone material not only enhances sound quality but also ensures reliability in varied conditions.
Powerful Performance: With a peak power handling of 550W and RMS power handling of 275W, the SH-P69 delivers powerful sound reproduction across a wide frequency range from 60Hz to 22KHz. It boasts a sensitivity of 98dB (1w/1m), ensuring efficient output with minimal distortion.

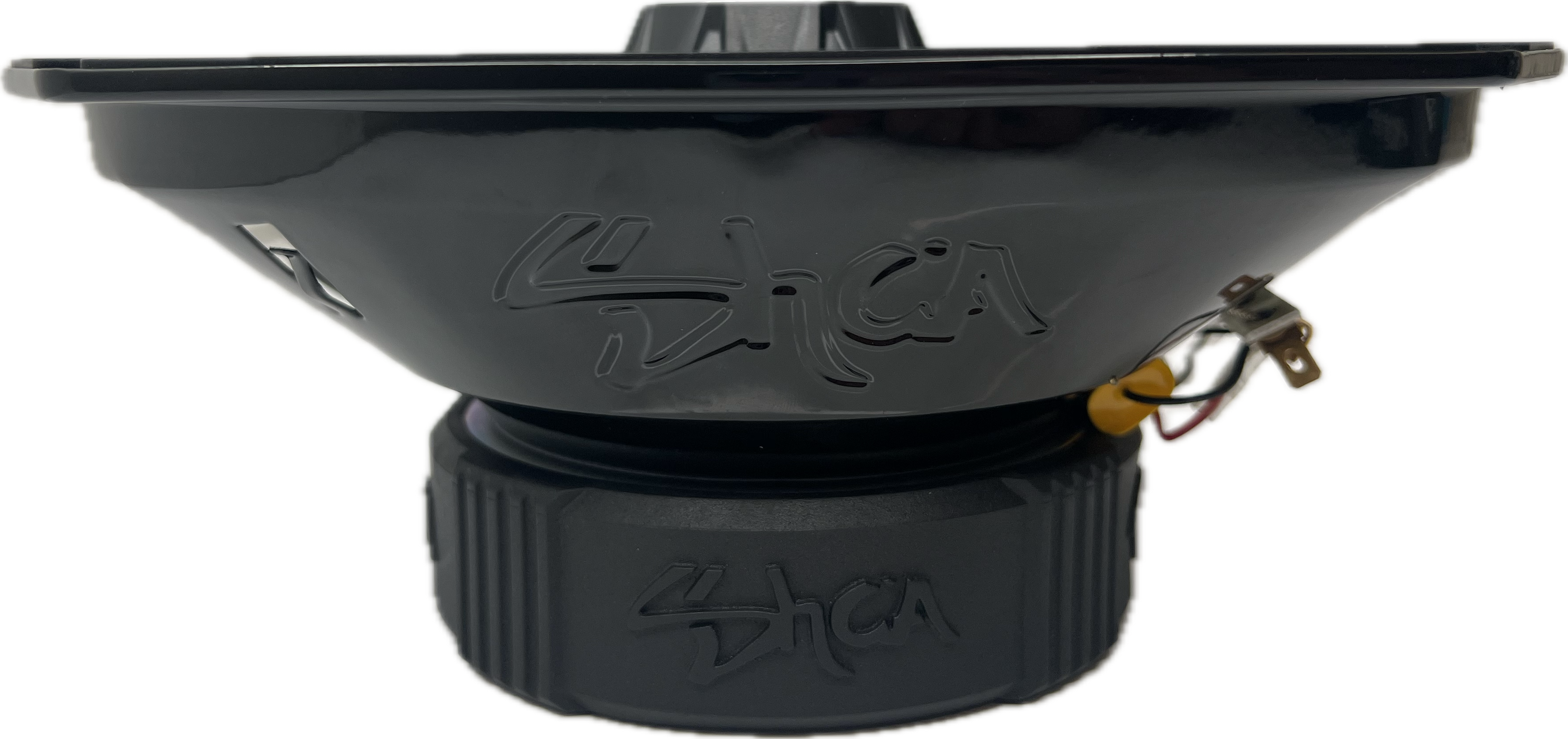

Construction and Design: The woofer features a 1.5” voice coil (Kapton former) with a CCAW winding, housed in a sturdy steel basket for structural integrity. The tweeter’s aluminum alloy diaphragm and neodymium magnet provide excellent responsiveness and heat dissipation, enhancing overall performance and longevity.

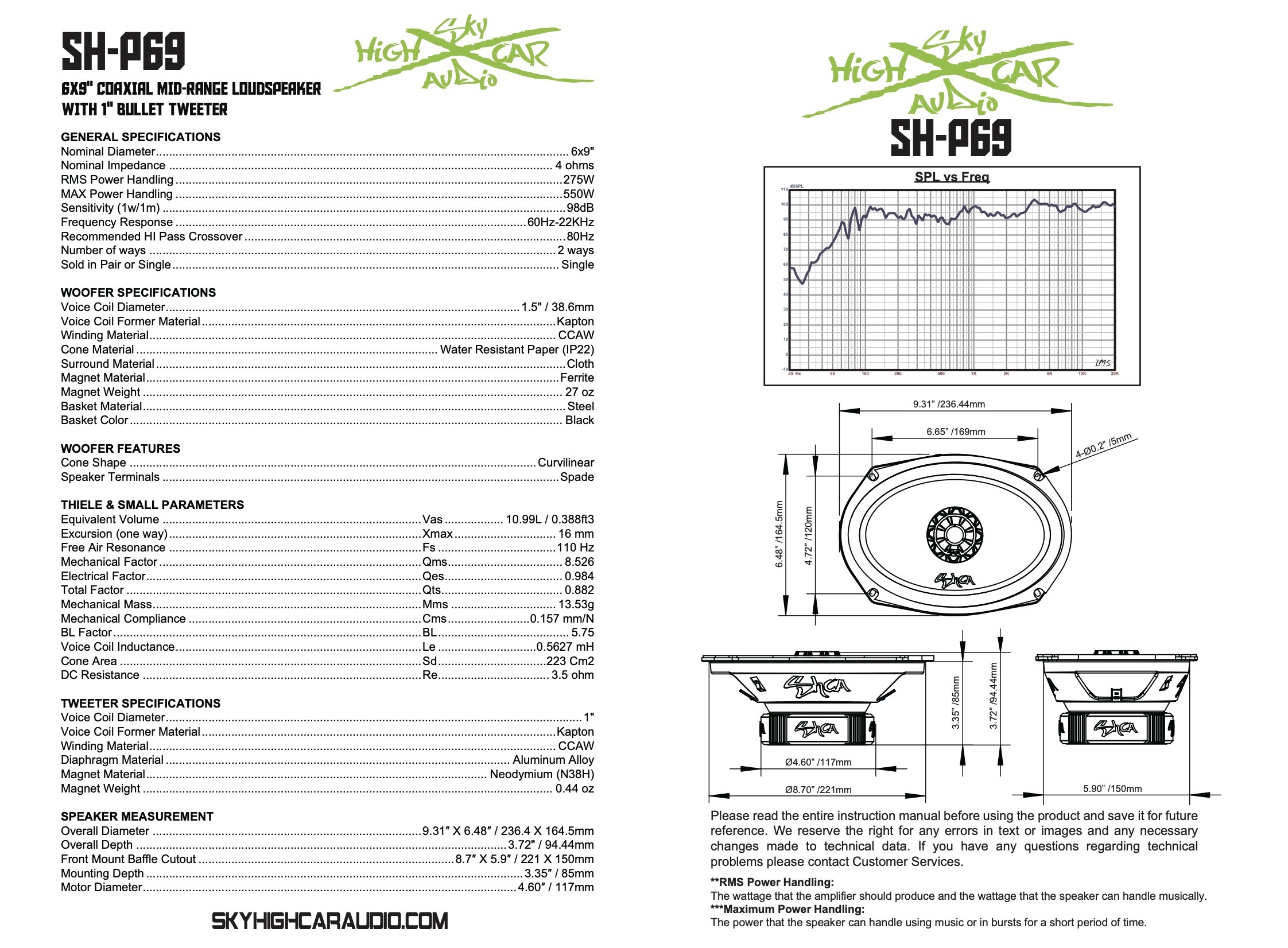

Advanced Specifications: Designed for versatility, the SH-P69 includes a recommended high-pass crossover frequency of 80Hz and is optimized for a 4-ohm nominal impedance. Its Thiele & Small parameters such as Xmax (16mm) and Qts (0.882) contribute to dynamic sound reproduction and precise bass response.
Dimensions and Mounting: Compact yet powerful, the SH-P69 measures 9.31” x 6.48” in overall diameter with an overall depth of 3.72”, making it easy to install in a variety of vehicles. The front mount baffle cutout is 8.7” x 5.9”, and it requires a mounting depth of 3.35”.
Ideal for Enthusiasts: Whether you’re upgrading your car’s audio system or building a custom setup, the Sky High Car Audio SH-P69 is designed to meet the demands of discerning audio enthusiasts, delivering exceptional sound quality, durability, and performance.
