Product Description

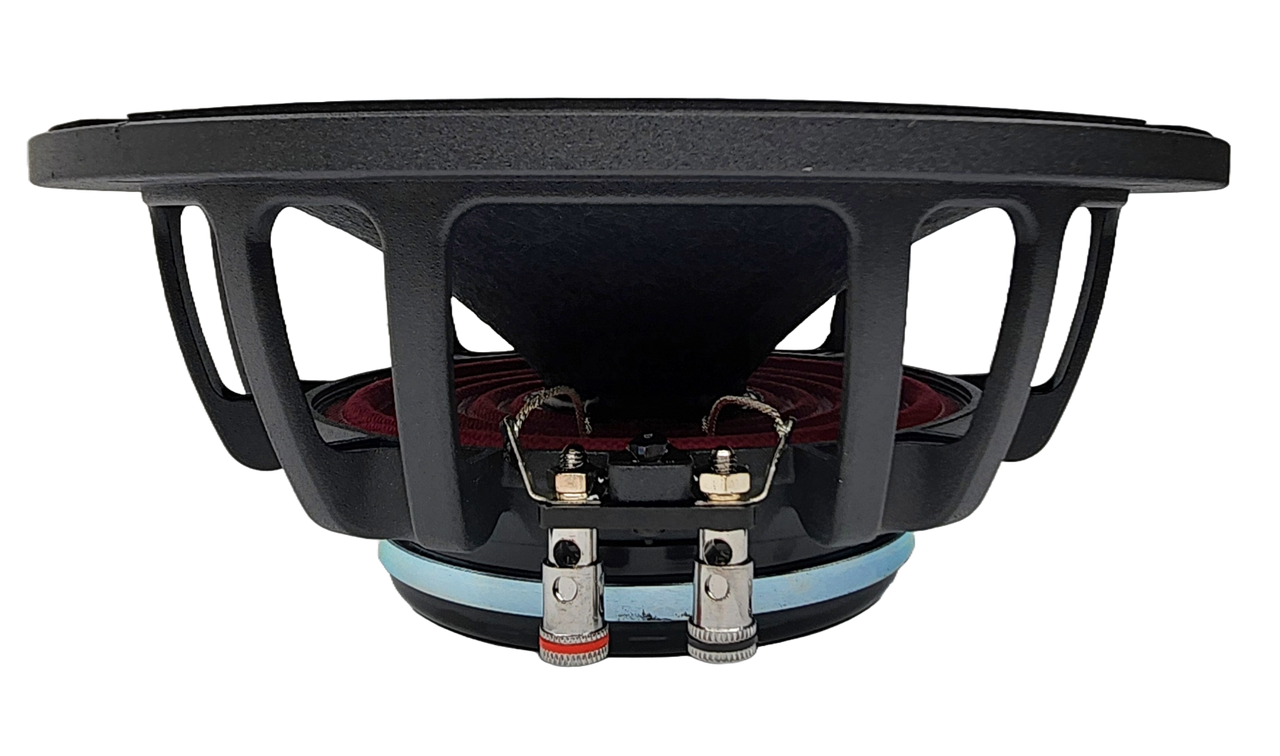

Sky High Car Audio SH-EL84B 8” Midrange Loudspeaker with Bullet
Take your car audio experience to the next level with the Sky High Car Audio SH-EL84B 8” Midrange Loudspeaker. Designed for enthusiasts who demand exceptional clarity and power, this speaker combines high-performance sound with durable construction.
Superior Sound Performance
The SH-EL84B delivers an impressive frequency response range from 80Hz to 13KHz, making it ideal for capturing midrange clarity with powerful vocals and precise instrumentals. With an RMS power handling of 275W and a peak power of 550W, it provides dynamic and detailed audio at any volume. Its high sensitivity rating of 98dB ensures efficiency and excellent sound output.
Durable and Reliable Design
Built with a non-pressed paper cone and CNC-machined aluminum bullet, this loudspeaker is engineered for precision and durability. The cloth surround enhances flexibility and longevity, while the steel basket ensures structural integrity under demanding conditions.
High-Performance Motor System
Equipped with a 1.5-inch Kapton voice coil and CCAW winding, the SH-EL84B offers superior thermal and electrical conductivity. A 30-ounce ferrite magnet provides the powerful magnetic field needed for clean, distortion-free sound, even at high power levels.
Versatile Installation Options
With an overall depth of 3 inches and a front baffle cutout diameter of 7.16 inches, this 8-inch speaker is designed to fit seamlessly into most vehicle setups. Whether you’re upgrading your system or starting a custom build, the SH-EL84B is an ideal choice.
Precision-Engineered for Midrange Excellence
Designed for maximum performance in midrange frequencies, this loudspeaker ensures crystal-clear sound for vocals and instruments, creating a balanced soundstage for any audio setup.
Specifications:
•Nominal Diameter: 8 inches / 203mm
•Nominal Impedance: 4 Ohms
•Continuous Power Rating: 220W
•RMS Power Handling: 275W
•Max Power Handling: 550W
•Sensitivity (1w/1m): 98dB
•Frequency Response: 80Hz - 13KHz
•Recommended High-Pass Crossover: 100Hz
Features:
•Cone Material: Non-Pressed Paper
•Bullet Material: CNC Aluminum
•Surround Material: Cloth
•Basket Material: Steel
•Magnet Material: Ferrite
•Magnet Weight: 30 Oz
•Voice Coil Diameter: 1.5 inches / 38.6mm
•Voice Coil Former Material: Kapton
•Winding Material: CCAW
Measurements:
•Overall Diameter: 8.22 inches / 209mm
•Mounting Depth: 3 inches / 75mm
•Front Mount Baffle Cutout: 7.16 inches / 182mm
•Motor Diameter: 4.72 inches / 120mm
•Overall Depth: 3.22 inches / 82mm
Upgrade your car audio setup with the Sky High Car Audio SH-EL84B. Sold individually, this midrange loudspeaker is engineered for superior performance and reliability, ensuring every listening experience is nothing short of exceptional.
Please note: This speaker is sold individually.
