Product Description

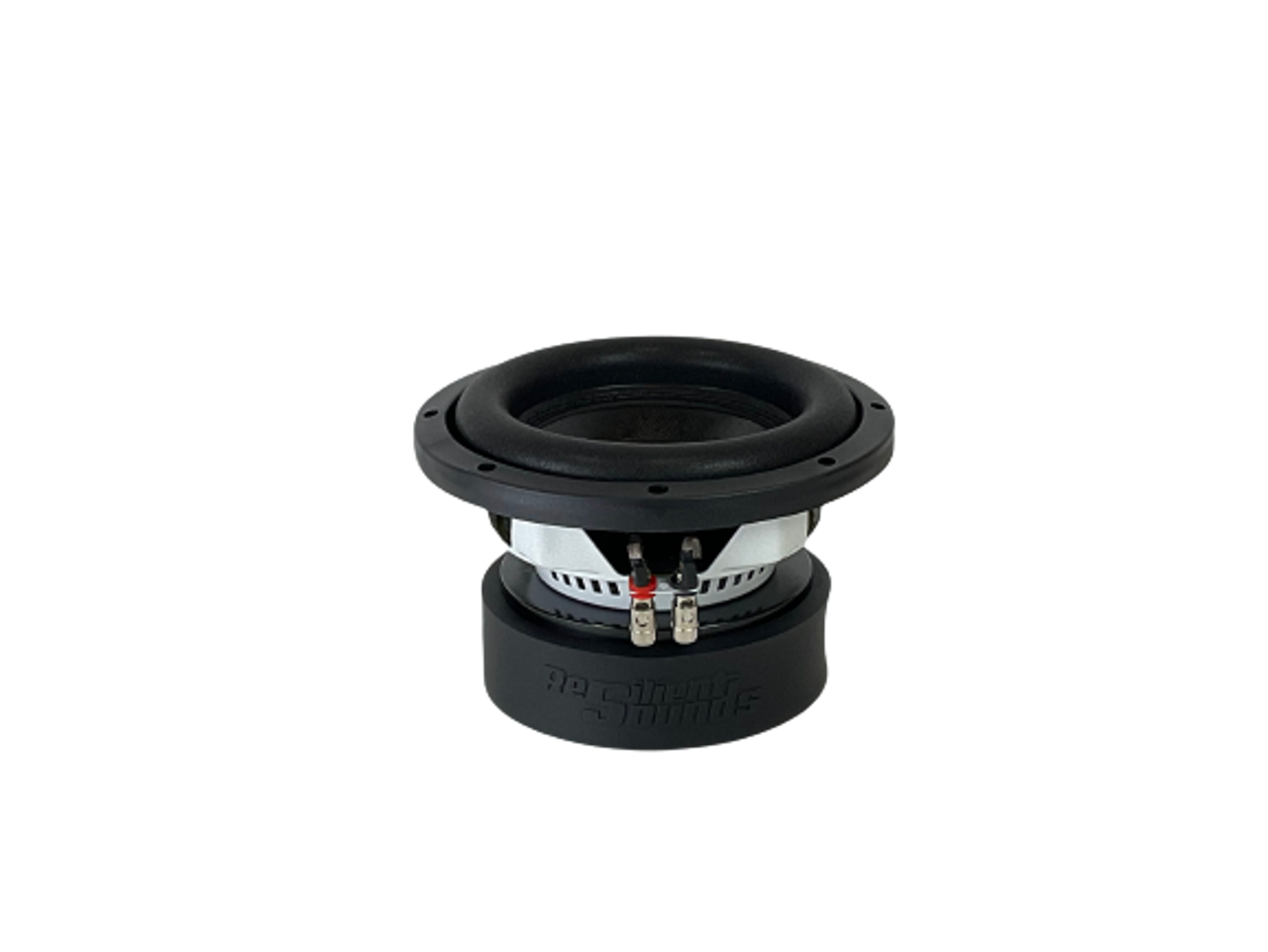

RS 8 V2 500RMS ENTRY WOOFER
| SPECS | RS 8 V2 | |||
| RMS | 500 | |||
| Voice Coil | 2" | |||
| Impedance | Dual 4 Ohm | |||
| SPL | 80.9 dB | |||
| FS | 35.728 Hz | |||
| BL | 21.323 | |||
| RE (Ohms) | 8 | |||
| QMS | 2.674 | |||
| QES | 0.488 | |||
| QTS | 0.413 | |||
| CMS (uM/N) | 0.16 | |||
| MMS | 123.556 g | |||
| VAS | 8.547 L | |||
| Enclosure Specs | ||||
| SPECS | RS 15 V2 | RS 12 V2 | RS 10 V2 | RS 8 V2 |
| Net Volume | 3.0-4.0 Cu. Ft | 1.5-2.25 Cu. Ft | 1.0-1.6 Cu. Ft | 0.5-0.75 Cu Ft |
| Tuning | 29-34Hz | 28-32Hz | 32-36Hz | 30-34Hz |
| Port area | 12-16 Sq In of Port Area per Cu Ft | 12-16 Sq In of Port Area per Cu Ft | 12-16 Sq In of Port Area per Cu Ft |
