Product Description
One marine head unit to rule them all! This marine headunit is full size, easy to use, stylish, and will also stand up to the rigorouspunishment that all marine and off-road head unit go through. This powerful receiver features all the functions you need like BT, RCA outputs including subwoofer, USB linking and charging with remaining waterproof! This is the key to enjoying loud music with the highest quality for your boat, atv, or any vehicle that may see the water frequently.
Highlights

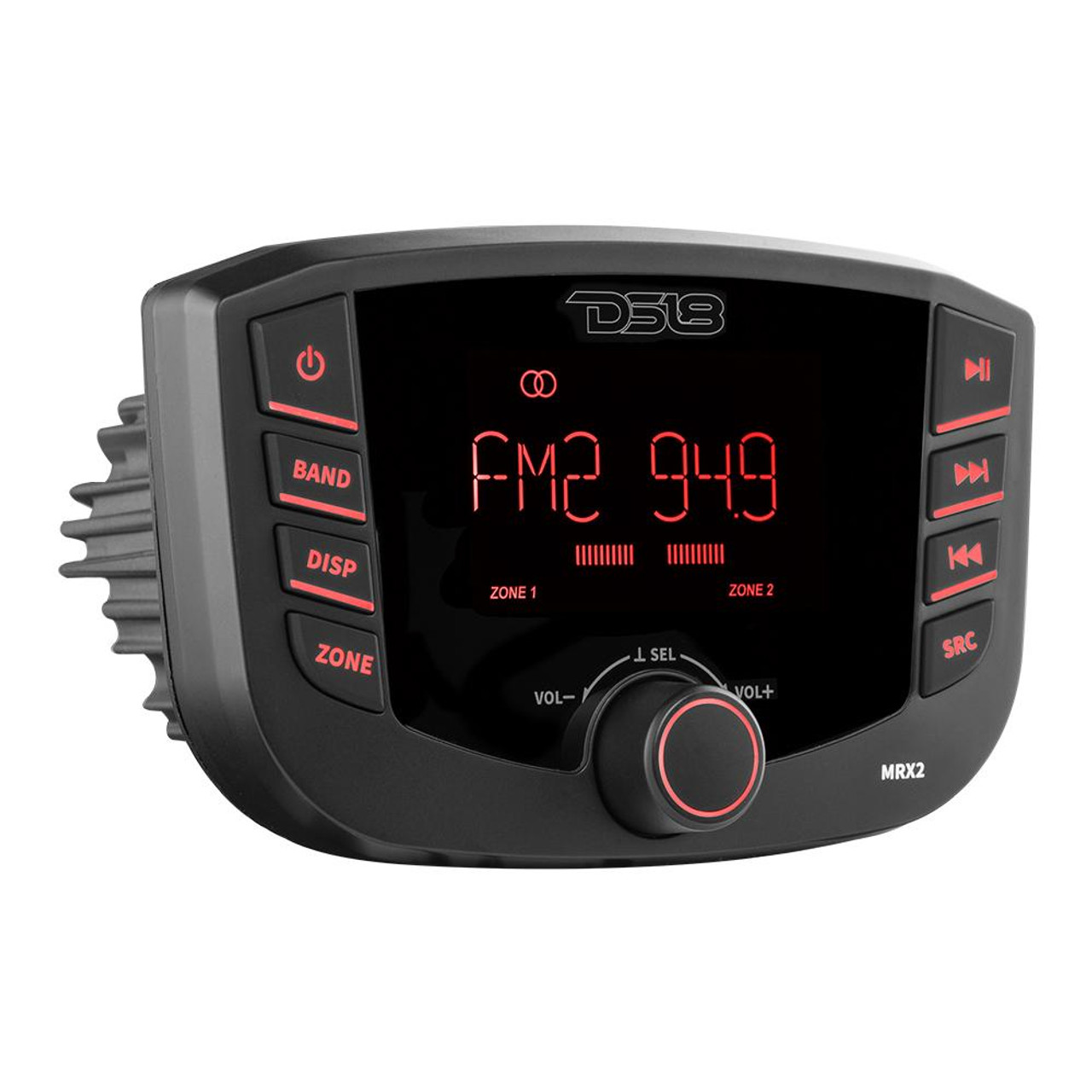

The MRX2 is DS18's NEW all in one marine head unit that does it all!
- V5.0 Bluetooth pairing functions so you can play music direct from your phone or any BT source.
- precisesound settings options that let's you controlthe bass, treble, balance, fade, zone, EQ, loudness, and Subwoofer crossover with ease.
- easy-to-read LCD display with lit keys so you can see in low light situations.
- Also provided CT sync that allows for settings like time be adjusted by over the air radio frequencies.
- The USB can transfer music along with charging your chosen device at the rate of 2a.
- The MRX2's sound output can be matched because we have made this unit to use 4v pre amp outputs so you can expect the highest quality sound with the voltage to push it.
- The MRX2 has 3 outputs to accommodate fully applied systems easily with front, rear, and sub high quality outputs.
- The IP65 waterproof rating will help you stay confident while using the head unit in harsh and wet terrain without failure.
- 2 RCA zone output so you can mix your music between them.
- This radio has an amazing power output. With a 4 ohm load you will get 4x15 watts rms and 2 ohm load you will get 4x25 watts rms which is enough to push most entry level speakers. (Amps will be required to install tower speakers and subs)
- Enjoy all your favorite AM/FM stations with our wideband AM/FM receiver that is also selectable under source controls.
| SPECIFICATIONS | |
| GENERAL: | |
| Operating Voltage: | 10.5 -16 Volts |
| Low Voltage Warning Alert: | YES (< 11V) |
| Waterproof Rating: | IPX6 |
| UV/Salt Protection: | YES |
| Buttons: | Rubber + RGB Backlit (synced with LCM) |
| Screen Panel: | Gorilla Glass with OCA Full Bonding |
| DISPLAY: | |
| Type: | Liquid Cristal Module |
| Backlight: | 7 Colors Selectable (Auto / White / Red / Blue / Green / Purple / Cyan / Yellow |
| AUDIO: | |
| Power Output RMS: | 4 x 15W @ 4ohm / 4 x 25W @ 2ohm |
| Max: | 4 x 50W @ 2ohm |
| Min Load: | 2 ohm Stable per Channel |
| Frequency Response: | 20Hz to 20Khz |
| RCA Pre-Out Voltage: | 4 Volts |
| Output Impedance: | 500ohm |
| Equalizer: | 2 Bands (Bass 80Hz, Treble 12Khz) |
| Presets: | YES (S-Bass / Vocal /Powerful / clarity) |
| Subwoofer Control: | Level (-10 to +10) |
| Audio Zones: | 2 Zones (Stereo + Subwoofer each) |
| Independent Zone Control: | YES (Level/Tone) |
| Audio Input: | L+R RCA (Aux Input) |
| TUNER: | |
| FM Frequency Range: | 87.5 -107.9 MHz |
| AM Frequency Range: | 530 -1710 KHz |
| Weather Band: | 162.40 -162.55 MHz |
| NOAA Weather Band: | YES Compatible |
| Tuner Presets: | 18 FM / 12 AM / 6 WB |
| Radio Data System: | YES (AF / TA / NEWS) Selectable |
| CONNECTIVITY: | |
| Bluetooth Version: | 5.0 + EDR |
| Audio Streaming: | A2DP |
| USB Compatibility: | v2.0 |
| USB Capacity: | 64 Gb Max |
| USB Charge Capacity: | 2.1Amp |
| Audio Files Compatibility: | MP3, WMA |
| Remote Control: | Wired 3.5mm Jack Input (Compatible with MXRC) |
