Product Description
KEY FEATURES
- 2 Channel
- Level Matching Controls(FL,FR)
- Remote Out ~ Auto Turn On
- Speaker Emulator ~ Compact
- Step-Down Method: Electronic / SMC
- 3.2V Pre-Amp Outputs
SPECIFICATIONS
SKU
VX2HL
Speaker Level Input Channels
2 Channels (L/R)
Auto Turn-On
Yes, DC (3v)
Remote Output
Yes, 12v DC 100mA max
Remote Output Short Circuit Protection
Yes, <10 Seconds
Amplifier Outputs
2 Channels RCA (L/R)
Level Matching Controls
Yes, (L/R)
LED Indicators
No
Housing Material / Color
ABS / Black
Wiring Connector
Dual Molex (8/4pins)
Step-Down Method
Electronic / SMC
Maximum Speaker Level Input
50Wrms
Maximum Preamp Output
3.2V
Nominal Conversion Ratio
4:1
Frequency Response
10Hz-30KHz
Total Harmonic Distortion
0.02% (1KHz)
Input Impedance
45 ohms (Speaker Emulator)
Output Impedance
2K-ohms
S/N Ratio
>100dB
Channel Separation
>60dB
Noise Rejection
>60dB
PRODUCT OVERVIEW

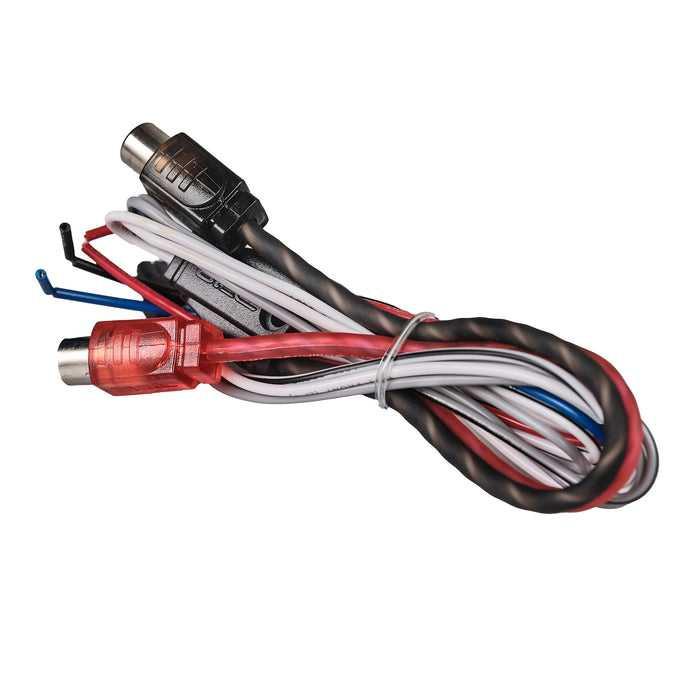

DS18 VX2HL
2 Channel Line Output Converter With Auto Turn-On and Speaker Emulator
The VX2HL from DS18 is your go-to solution for converting speaker-level outputs into clean RCA signals—perfect for integrating aftermarket amps into OEM audio systems without triggering factory errors or sacrificing sound quality.
2-Channel Line Output Converter with RCA Outputs
Connect factory speaker lines and send them out to your amplifier with accurate signal transfer and built-in level matching controls for fine-tuned output. Built-in level matching controls allow fine-tuned output, while robust 3.2V preamp outputs provide strong, clean signals ideal for driving a wide range of aftermarket amps.
Built-In Speaker Emulator
Modern vehicles throw warnings when speakers are disconnected—DS18’s speaker load simulator ensures smooth integration and error-free installation.
Noise-Free
With advanced noise rejection, ultra-low 0.02% THD @ 1kHz, and a 10Hz–30kHz frequency response, your music plays uninterrupted, and as it was meant to be heard.
Auto Turn-On Feature (3V DC Trigger)
Automatically powers your amp when your factory audio system kicks on—no need for manual switches or ignition taps.
Compact, Durable, and Protected
Housed in tough black ABS, the VX2HL features short circuit protection, a compact footprint, and easy wiring access—making installs simple and clean.
Add amps to any OEM system with confidence. DS18’s VX2HL makes it sound right.
