Product Description

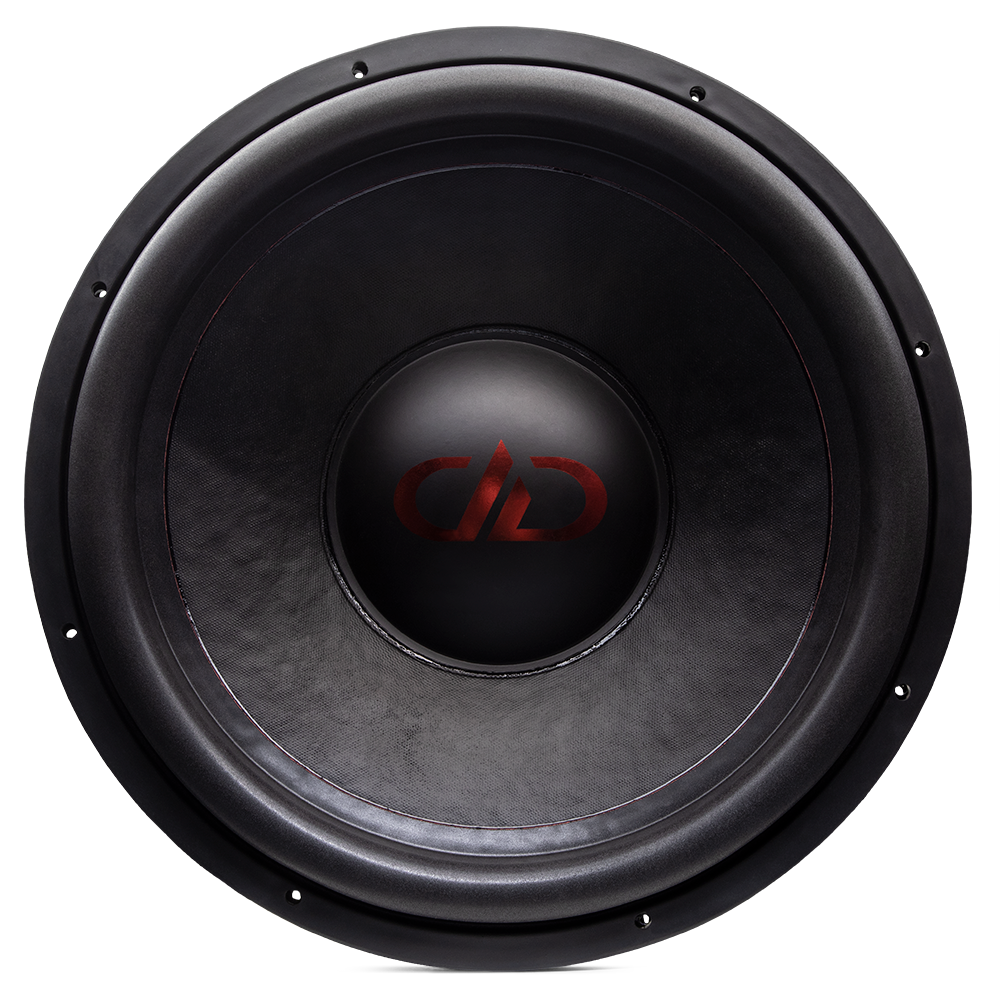

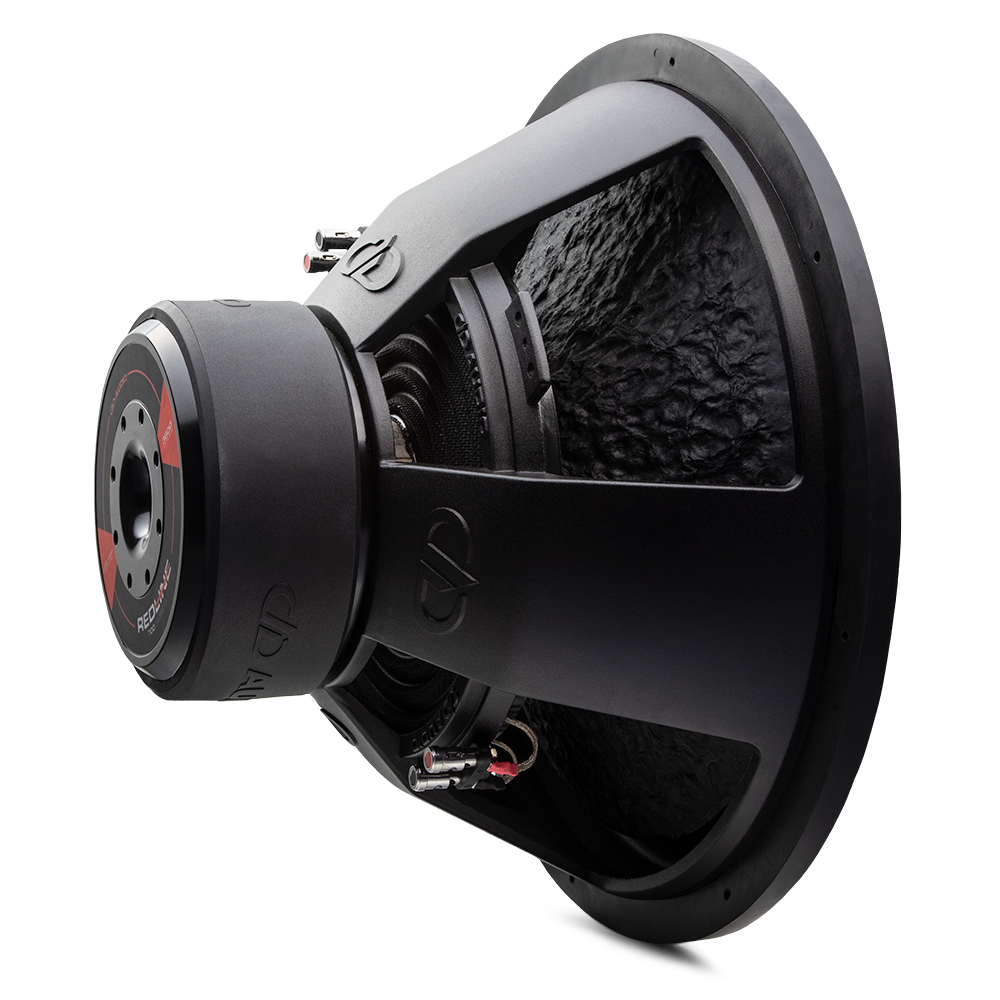

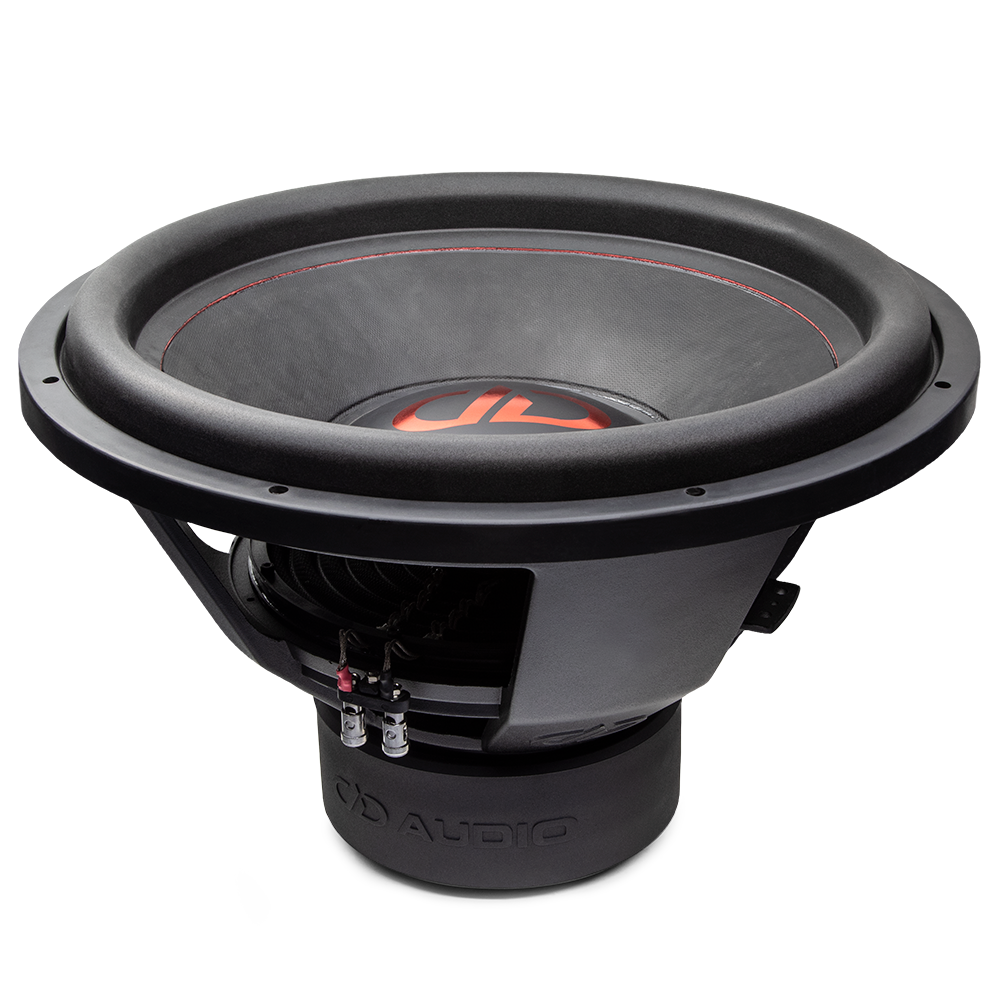

The 700 series is designed for serious performance. It features a DD cast basket supporting a triple stack magnet motor, heavy duty suspension, and a high strength cone coupled to a massive EROM surround, making them best suited for duty in vented or multi-order enclosures.
|
|
718D |
|
Speaker Size (In): |
18 |
|
Watts RMS: |
600 - 1200 |
|
Watts Peak: |
3600 |
|
Impedance: |
D2 / D4 |
|
VCD (In): |
3 |
|
Piston Diameter (In): |
15 1/2 |
|
Fs (Hz): |
26.92 |
|
Qms: |
6.79 |
|
Qes: |
0.567 |
|
Qts: |
0.523 |
|
Vas (Liters): |
170.4 |
|
Xmech (MM): |
80 |
|
Xmax (MM): |
16 |
|
Frame OD (In): |
18 3/8 |
|
Frame OD w/ Gasket (In): |
18 1/2 |
|
Mounting Diameter (In): |
16 5/8 |
|
Mounting Depth (In): |
10 1/2 |
|
Motor Diameter (In): |
7 3/4 |
|
Motor Depth (In): |
3 1/2 |
|
Woofer Displacement (CuFt): |
0.25 |
|
Ported Enclosure (CuFt): |
6.0 - 8.0 |
|
Shipping Weight (Lbs): |
43 |
|
Price (USD): |
559 each
|
