Product Description

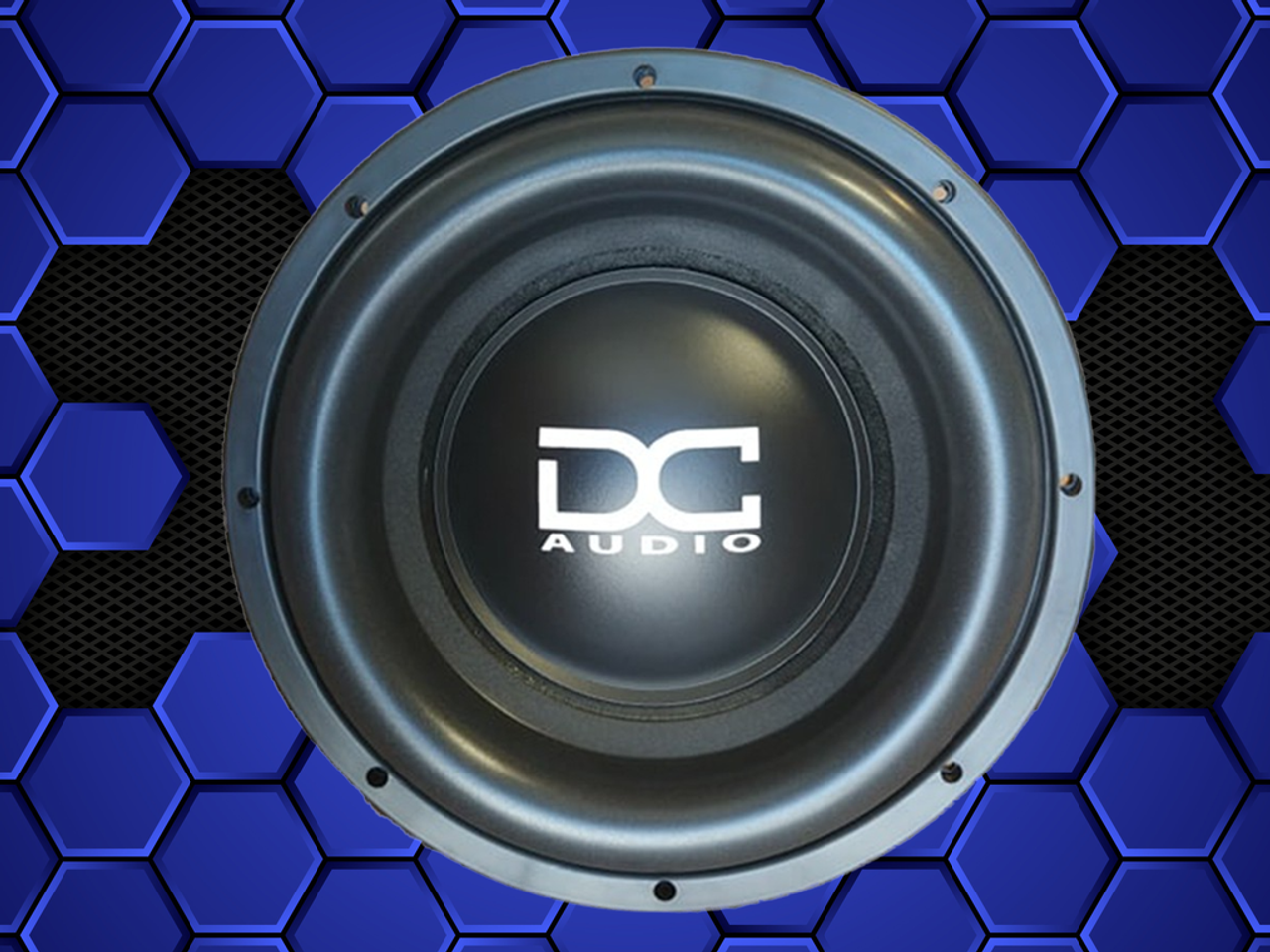

DC Audio XL SPL Subwoofer
Model: M4 SPL
Sizes Available: 10,12,15 and 18 Inch Models
Power Handling: 2200 Watts RMS 4400 Watts Peak
The XLm4 is the next generation of our most award-winning driver. The XLm4 has an added pole vent, redesigned top plate and T yoke, larger magnets wrapped in a stylish motor boot an 8-layer flat wound voice coil, upgraded cone and surround. We are always looking to make great even better and the XLm4 is again a step in that direction. Anyone looking for a subwoofer that not only sounds great but is a beast in the SPL lanes, look no further, you have found what you have been searching for.
Key Features
- Extremely rigid non-pressed paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- Triple 8"OD Stiff semi cup progressive roll spiders
- Dual Extra heavy duty interweaved tinsel lead wire
- Cast aluminum black frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Rubber Motor Boot
- Chrome spring loaded push terminals
- 8 Layer Flat Wound Hi-temp Aluminum Voice Coil
T/S Parameters
| 10" | 12" | 15" | 18" | |
|---|---|---|---|---|
| Mounting Depth | 8.25" | 9" | 10.25" | 11.25" |
| Mounting Hole Diameter | 9.35" | 11" | 14" | 16.75" |
| Outside Driver Diameter | 11" | 12.5" | 15.7" | 18.5" |
| VC Diameter | 3.0" | 3.0" | 3.0" | 3.0" |
| Displacement | .18 ft | .19 ft | .23 ft | .26ft |
| Power Handling rms/peak | 2200/4400 | 2200/4400 | 2200/4400 | 2200/4400 |
| Ohm Options (dual) | .7/1/1.4/2/4 | .7/1/1.4/2/4 | .7/1/1.4/2/4 | .7/1/1.4/2/4 |
| Sd | 324 cm | 494 cm | 791 cm | 1159 cm |
| Vas | 12.42 L | 25.77 L | 66.02 L | 144.36 L |
| Cms | 0.085 Mm/n | 0.08 Mm/n | 0.07 Mm/n | 0.07 Mm/n |
| Mms | 171.77 g | 213.7 g | 306.7 g | 346.07 g |
| Fs | 41.7Hz | 38.5 Hz | 34.3 Hz | 32.3 Hz |
| Bl | 22.73 N/A | 22.73 N/A | 22.73 N/A | 22.73 N/A |
| Re | 3.98 Ohm | 3.98 Ohm | 3.98 Ohm | 3.98 Ohm |
| Le | 5.2 mH | 5.2 mH | 3.5 mH | 3.5 mH |
| Qms | 11.24 | 12.92 | 8.18 | 8.32 |
| Qes | 0.35 | 0.403 | 0.706 | 0.718 |
| Qts | 0.34 | 0.391 | 0.65 | 0.661 |
| Xmax | 26mm | 26mm | 26mm | 26mm |
| Ref SPL @1 watt | 85.9 db | 87.5 db | 87.3 db | 90.4 db |
| Suggest Sealed Box | .75 ft | 1.0 ft | 2.0 ft | 3.5 ft |
| Suggested Ported Box | 1.0 ft | 1.50 ft | 3.0 ft | 5.5 ft |
Other Details
LENGTH OF WARRANTY DC Audio Products are covered by warranty for 1 year from date of purchase on parts and labor. This applies to the original purchaser only. Warranties are non-transferable. DETAILS OF WARRANTY From the date of original purchase and for the respective period, specified above. DC Audio agrees to repair or replace all DC Audio products, which are defective in material and/or workmanship. This warranty is not transferable and applies only to the original purchaser of the product. No Exceptions. It is DC Audio’s right to decide if a product will be repaired or replaced. All returns must be sent with an RA # on the outside of the box. Any and all products sent without a RA will be refused. An RA # can be obtained by calling DC Audio and requesting the number. Warranty claims must be accompanied by the original invoice to validate the warranty service. EXCLUSIONS This warranty does not apply with respect to the following: DC Audio’s warranty does not cover burned/open voice coils or lead wires, ripped surrounds or folded cones. These are all immediate signs of abuse/over powering. It does not cover products driven over their mechanical limits. Defects or damage caused by accident, fire, flood, and lightning or other acts of God. Defects or damage caused by abuse, misuse, or negligence. Products with voice coils that have failed due to excessive power levels or clipping, i.e. burned or open coils or lead wires. Damage caused during shipping or handling. These claims are made with the Freight Company. Accessories or anything else attached to or to be used with DC Audio products. Products that have their serial numbers removed or altered. Packing materials i.e. card board boxes, foam inserts, corners, peanuts, etc. Adjustments or alterations required for any reason. Items subject to fatigue through normal wear and use. Product, which has been altered or repaired by anyone other than DC Audio. RE-CONES All speakers, loudspeakers, subwoofers that have been re-coned by DC Audio will continue under warranty until the full 1 year warranty has expired. Any re-cone not performed at DC Audio by an authorized DC Audio worker is not covered under warranty. The end consumer accepts the responsibility and liability of knowing this speaker, loudspeaker, subwoofer no longer falls under DC Audio’s warranty program when the re-cones they purchased and/or the labor was performed by the end consumer. Amplifiers Amplifiers will not be covered under warranty if ran below their rated ohm load or if underpowered in any way. DC Audio has a "Recommended for Installation" section on each amplifiers web page. These need to be followed in order to ensure the amplifier will operate properly. Failure to do so can decrease the life of the amplifier and void your warranty.Product Videos
