Product Description
** FRESH RECONE **
This listing is for a B-Stock product. B-Stock refers to an item that could have been purchased and returned in not new condition, old inventory, cosmetically damaged in shipping or warranty repaired. These items are sold as is and offer no refunds. All items are tested and verified to be fully functional, with only cosmetic issues. Cosmetic issues may include: scratches, scuffs , dents or cosmetically broken parts.We offer a 5-Day plug and play warranty starting from day of delivery. Image in listing may not be exact item you are buying but for reference of other B-Stock item or new item.

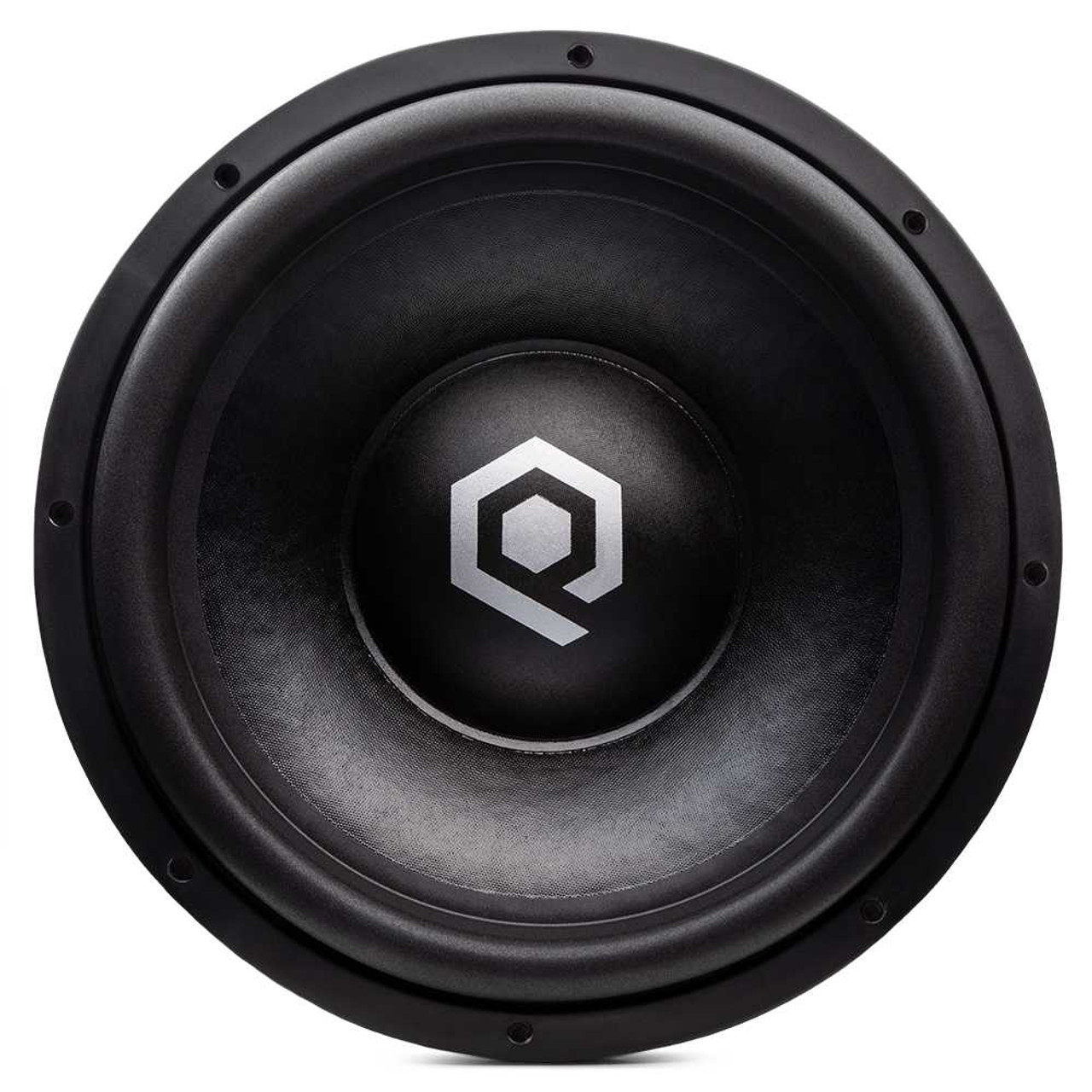

HDX subwoofers build upon the design of the HDC line in response to recent shifts in source material and the mainstream frequency tuning of our customers’ vehicles. Our team scrutinized all aspects of the HDC subs to improve performance at lower frequencies. The resulting HDX dual voice coil competition subwoofer line is more efficient, plays lower, and sounds better setting a new bar for performance and value.
INCREASED EXCURSION
The new cast basket accommodates larger diameter spiders, providing more room for cone and spider travel. Heat dissipates more quickly with greater movement and a more open airflow path.
New spiders with more, higher rolls take advantage of the increased suspension travel. This extra material in the spiders increases the freedom of movement, lowering the Fs, while maintaining durability over time.
The subwoofer’s surround profile is higher, reducing material stress while increasing excursion. Cone area and moving mass remain virtually the same, as opposed to inner-tube surrounds popping up here and there.
INCREASED STRENGTH AND DURABILITY
A fiberglass-reinforced pulp cone meets the strength demands of the increased excursion. A non-press cone formation process increases the cross-section area of the cone walls for more rigidity without adding extra mass.
The voice coils feature high-quality, American-made wire and adhesives increasing the thermal working range of the coil. Additionally, thicker, black-anodized aluminum formers increase thermal transfer from the coil wire.
The HDX line makes it easier to tune low-frequency pressure into a system without sacrificing impact. HDX subs allow you to explore design choices with high efficiency, making the most of amplifier power and electrical resources.
- 2000 Watts RMS, 6000 Watts Peak (Burp Only)
- 4″ Voice Coil
- Dual 1 Ohm Impedance
- Cast Frames
| Model | HDX412 | HDX415 | HDX418 |
|---|---|---|---|
| RMS Power | 2000 W | 2000 W | 2000 W |
| Peak Power | 6000 W | 6000 W | 6000 W |
| Magnet Weight | 403 oz | 403 oz | 403 oz |
| Coil Diameter | 4" | 4" | 4" |
| Woofer Size | 12" | 15" | 18" |
| F(s) | 30.95 Hz | 29.61 Hz | 22.8 Hz |
| Impedance | D1/D2 | D1/D2 | D1/D2 |
| Z(max) | 21.2 Ohms | 22.43 Ohms | 19.3 Ohms |
| Q(ms) | 3.664 | 4.047 | 4.568 |
| Q(es) | 0.344 | 0.3658 | 0.4852 |
| Q(ts) | 0.3145 | 0.3355 | 0.4386 |
| V(as) | 24.93 Liters | 55.04 Liters | 163.3 Liters |
| L(e) | 0.7672 | 0.8143 | 2.477 |
| n(0) | 0.205% | 0.372% | 0.384% |
| M(ms) | 422 grams | 500.3 grams | 616.8 grams |
| C(ms) | 0.063 | 0.058 | 0.078 |
| Sensitivity (1W/1m) | 85.22 dB | 87.81 dB | 87.95dB |
| BL | 20.84 | 21.75 | 18.4 |
| Xmax | 21 | 21 | 31 |
| Sd | 260.4 mm | 323.9 mm | 393.7 mm |
| Displacement | 0.2³ | 0.22³ | 0.32³ |
| Mounting Depth | 8 5/8" | 9 3/8" | 11 5/8" |
| Circle Cutout | 11 1/2" | 13 7/8" | 16 9/16" |
| Ported Enclosure (Cu Ft): | 1.75-2.75 FT³ | 3-6 FT³ | 5-7 FT³ |
