Product Description

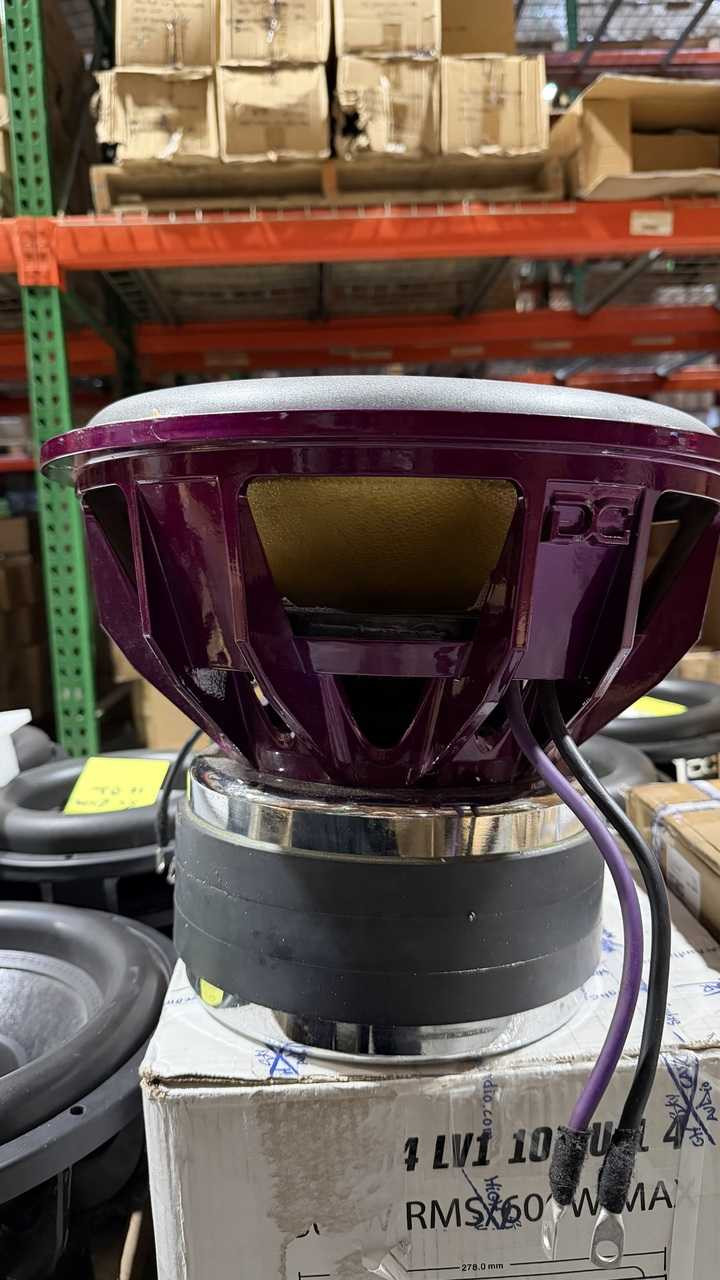

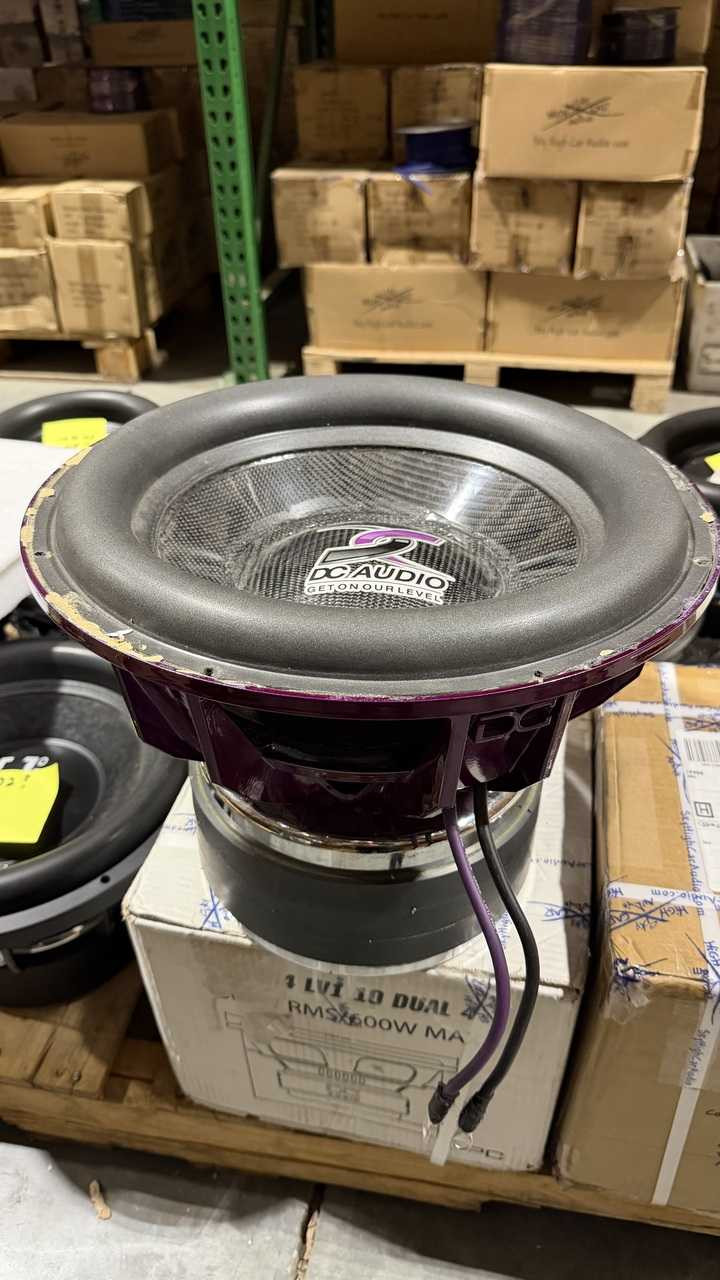

This listing is for a B-Stock product. B-Stock refers to an item that could have been purchased and returned in not new condition, old inventory, cosmetically damaged in shipping or warranty repaired. These items are sold as is and offer no refunds. All items are tested and verified to be fully functional, with only cosmetic issues. Cosmetic issues may include: scratches, scuffs , dents or cosmetically broken parts.We offer a 5-Day plug and play warranty starting from day of delivery. Image in listing may not be exact item you are buying but for reference of other B-Stock item or new item.
Key Features
- Extremely strong kraft pulp fiber reinforced cone
- Wide Long Throw foam surround
- Dome polypropylene dust cover with White DC logo
- 10” OD Spaced Spiders
- Extra heavy duty sewn tinsel lead wire
- Cast DC Series aluminum black frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Rubber Motor Boot
- 8 Awg OFC Direct Leads
- 3.5” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum voice coil former with high current input strips.
T/S Parameters
| 12" | 15" | 18" | ||
|---|---|---|---|---|
| Mounting Depth | 10.5" | 11.75" | 12.75" | |
| Mounting Hole Diameter | 11.15" | 14.25" | 16.90" | |
| Outside Driver Diameter | 12.5" | 15.7" | 18.5" | |
| VC Diameter | 3.5" | 3.5" | 3.5" | |
| Displacement | .19 ft | .23 ft | .26ft | |
| Power Handling rms/peak | 3500/7000 | 3500/7000 | 3500/7000 | |
| Ohm Options | d.7/d1/d2/d4 | d.7/d1/d2/d4 | d.7/d1/d2/d4 | |
| Sd | 494 cm | 791. cm | 1159 cm | |
| Vas | 18.19 L | 48.98 L | N/A L | |
| Cms | 61.22 um/n | 55.12 um/n | N/A Mm/n | |
| Mms | 442.01 g | 487.2 g | N/A g | |
| Fs | 30.59 Hz | 30.7 Hz | N/A Hz | |
| Bl | 29.21 N/A | 31.38N/A | 31.38 N/A | |
| Re | 4.01 Ohm | 3.26 Ohm | 3.26 Ohm | |
| Le | 4.29 mH | 1.86 mH | N/A mH | |
| Qms | 8.56 | 5.59 | N/A | |
| Qes | 0.399 | 0.310 | N/A | |
| Qts | 0.381 | 0.300 | N/A | |
| Xmax | 32mm | 32mm | 32mm | |
| Ref SPL @1 watt | 82.89 db | 89.4 db | 90.4 db | |
| Suggest Sealed Box | N/A | N/A ft | 3.5 ft | |
| Suggested Ported Box | 1.50 ft | 3.25 ft | 5.5 ft |
