Product Description

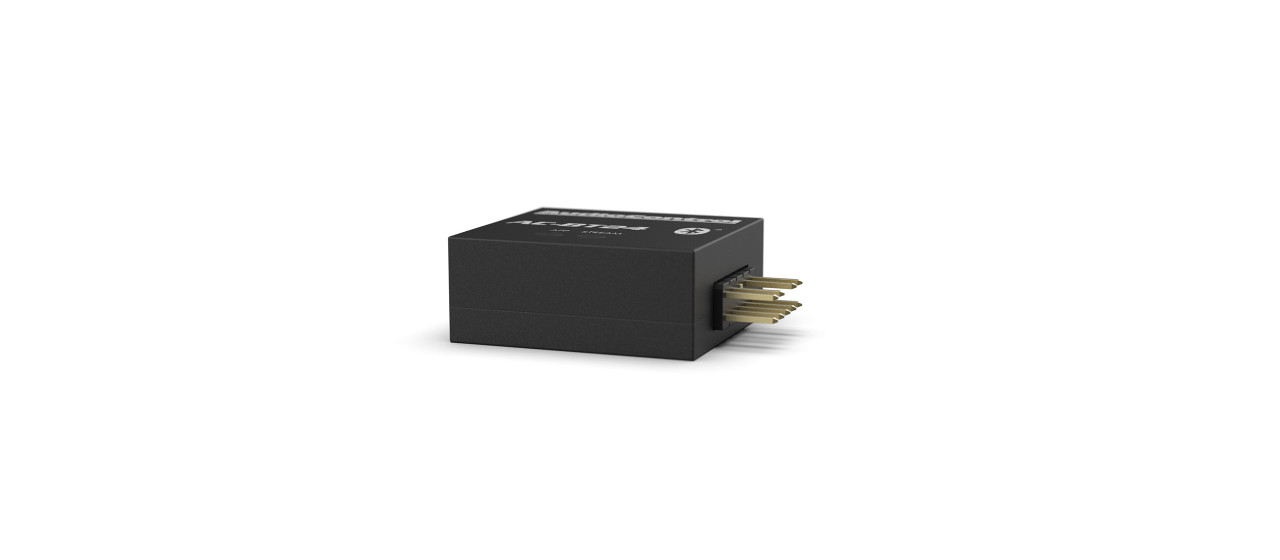

AC-BT24
bluetooth® streamer & programmer
The AC-BT24 enables high definition Bluetooth® audio streaming (aptX HD support) and programming for AudioControl DSP products featuring the Option Port. Stream hires audio directly to the DM-810 and DM-608 DSP or the D-6.1200 DSP amplifier and program the DSP simultaneously. The AC-BT24 also allows for complete DSP setup and programming using the DM Smart DSP app for iOS and Android.
features
- High Definition Low-Latency Audio Streaming
- aptXTM HD Support
- 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
- Wireless DSP Programming via DM Smart DSP™ app for iOS/Android
- Simultaneous Audio Streaming and DSP Programming
specifications
bluetooth
- Version: 4.2
- aptX HD Compatible
- UART Interface
output
- Dual Differential Class AB Output Stage
performance
- Signal to Noise Ratio: 96 dB
- Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
- Operating Range: 10+ meters (depending on environment)
general
- Power Requirements: Provided by Option Port
weights & dimensions
- Dimensions: 1.4”L x 1.0”W x 0.5”H
- Weight: 0.3 oz (9 g)
in the box: AC-BT24, Quick Start Card, Warranty
